> Narda rf relay, dc-12 ghz, 1400 watt @ 144 mhz,

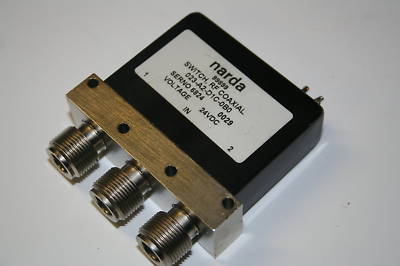

Narda rf relay, dc-12 ghz, 1400 watt @ 144 mhz,
* They are rated for 1400W on 144MHz having and isolation of more than
* At 6GHz there is still an isolation of around 95dB
* At 10GHz There is more than 60dB Insertion loss is 0,15dB at 10GHz.
* The relay is rated for 180W on 10GHz.
* The number on the relay (023-A2-D1C-0B0) states data up to 1GHz but the
series of this relay is up to 12GHz. I guess someone ordered a custom
made. They test fine up to 10GHz.
* Relay coil is 24V and works down to 16Vdc.
* on the relays there is an extra contact set for monitoring the position
* The Relay is 70x72x23mm and do have the 3 N connectors on the same side.
