> Southbend bect-12 tilting skillet, electric, countertop

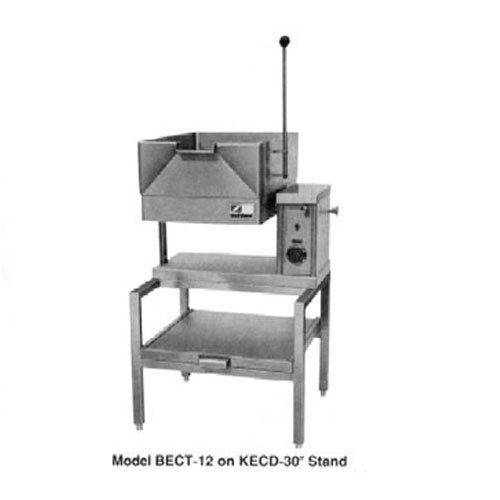

Southbend bect-12 tilting skillet, electric, countertop
Tilting Skillet, Electric, Countertop, 12 Gallon
Tilting Skillet, Countertop, Electric, 12-gallon capacity, rectangular pan, stainless steel construction, 9 kw
* Model BECT-12 electrically heated counter tilting skillet, UL listed, CSA certified and NSF listed.
* The skillet shall have a one-piece coved corner, 10 gauge stainless steel pan with satin finish exterior and polished interior.
* Heating shall be accomplished by electric elements cast embedded into a full 1-1/2" (38mm) thick aluminum casting clamped to the underside of the pan for even heat distribution across the entire surface.
* The skillet pan shall be mounted on side pivots to allow tilting for complete removal of contents by means of a tilting handle with a heat proof knob.
* A locking device shall permit the pan to be tilted forward slightly during cooking to aid grease removal.
* The mounting base shall include concealed mounting lugs for bolting unit to a counter top.
* The controls shall be integrally mounted in the stainless steel clad housing and shall include a power switch, thermostat, pilot light and high temperature cut-off.
* The skillet shall operate in a temperature range of 160F to 450F (71 C to 232 C).
