Greenlee 36414 1-3/8" (34.9 mm) multi-hole step bit usa
GREENLEE 36414 1-3/8" (34.9 MM) MULTI-HOLE STEP BIT MADE IN THE USA

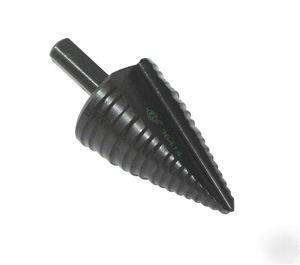

Offered for sale is the Greenlee 36414 1-3/8" (34.9 mm) Multi-Hole Step Bit
Multi-hole bits allow you to drill a hole in any of the stated diameters. 7/8" (22.2 mm) 1-1/8" (28.6 mm) 1.201" (30.5 mm) 1-7/32" (31.0 mm) 1-1/4" (31.8 mm) 1-3/8" (34.9 mm)
Hole Sizes: From 7/8" through 1-3/8" (22.2 - 34.9 mm)
Capacity: Cut up through 3/8" (9.5 mm) mild steel, copper, brass, aluminum, wood, plastic and laminates.
Overall length: 3-1/8" (79.4 mm).
Minimum Chuck Size: 3/8" (9.5 mm).
Maximum Material Thickness: 10 GA.
Unique split tip design penetrates through steel faster.
Resists walking or skidding, even on round surfaces.
Balanced, double-flute construction requires less pressure, does the work for you.
Designed and manufactured in USA.
