Cmi savetime 2000 series timeclock time clock terminal

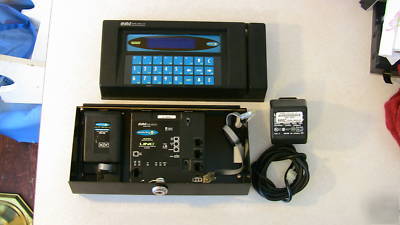

This listing is for a time clock terminal.
* Make: CMI (Control Module Inc)
* Includes power supply, host cable, backup battery
All models in the Series 2000 utilize our patented modular design to provide ultimate flexibility in display,media, reader, keyboard, communication, and peripheral configuration. Additional benefits of the series include:
* Collection, validation, time stamping,and retention of data even when host is unavailable
* Auto discrimination of common barcode, magnetics, and proximity formats.
* Durable, rugged enclosures, including
* NEMA for spill and contaminant resistance, and wash-down
* A variety of display options are available to satisfy a wide range of lighting conditions and temperature requirements.Offerings include LCD (Liquid
Crystal Displays) and VFD (Vacuum Fluorescent Displays). All LCD s are polarized for optimal viewing and are offered with optional LED backlight to provide viewing in low light conditions.
* Large, rugged membrane keyboard suited for gloved operators
* Adapts to a wide reange of applications
and communication status information
* Offline Setup Mode: Allows maintenance personnel to set operating parameters locally from the keyboard with a series of prompts. Includes menu-driven diagnostic tools to test the keypad, reader, display, beeper communications, and power line status.
* Interactive Mode: Provides direct access to the host application through the terminal. Collects and time-stamps data and sends it to the host for processing. Includes an extensive command interface which affords control of all hardware (display, keys,media, etc.) to the host.
* Prompt Mode: Shifts burden of operator prompting and initial data qualification from the host to the terminal. Displays prompts, accepts data,
* Interactive Prompt Mode: A mix of terminal and host processes. Applies flexibility to systems running online with the host, and includes the ability to transition to complete prompting mode for continued data collection if host or database is offline.
For further details, please visit http:// /uploaded_docs/Series2000.pdf
