Kuhlmann su 2 tool & cutter grinder, single lip grinder

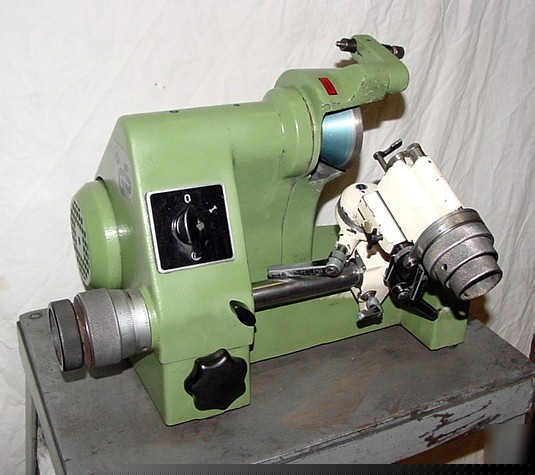

Kuhlmann SU 2 TOOL & CUTTER GRINDER, SINGLE LIP GRINDER
Kuhlmann SU 2 TOOL & CUTTER GRINDER, SINGLE LIP GRINDER, MADE IN GERMANY
KUHLMANN SINGLE-LIP UNIVERSAL TOOL GRINDER (PANTOGRINDER)
MODEL: SU 2 S/N: SU231.0034 NEW: 1991
THE "SU 2" ALLOWS YOU TO GRIND SINGLE-LIP CUTTERS TO
ANY CUTTING SHAPE AND ESAILY HANDLES DIES, TWIST DRILLS,
TURNING AND SHAPING TOOLS, PROBE STYLUSES, CENTER POINTS,
ELECTRODES AND MANY OTHER TOOLS.
INTRICATE TOOL PROFILES CAN BE GENERATED AND RESHARPENED
PRECISION GRINDING SPINDLE ALLOWS VIBRATION-FREE GRINDING
WITHOUT ANY CUTTER MARKS AND IS TIGHTLY SEALED TO PREVENT
THE DRESSING UNIT IS INCORPORATED IN THE WHEEL GUARD AND
ADJUSTED BY A FINE ADJUSTING SCREW.
A WIDE VARIETY OF SHAPES AND PROFILES ARE OBTAINABLE DUE TO
THE NUMEROUS LINEAR AND ROTARY ADJUSTMENTS ON THE SO.
POWER RATING ..................................... 0.25 KW
MOTOR SPEED ...................................... 2800 RPM
GRINDING SPINDLE SPEED ........................... 5600 RPM
- TAPER SHANKS .................................. #1 & #2 MT
LATERAL .......................................... 0.4"
LONGITUDINAL ..................................... 1.6"
MAX. RELIEF ANGLE ................................ 45 DEG.
FINE ADJ. OF INDEX HEAD BRACKET .................. 0.6"
MACHINE WEIGHT (MACHINE ONLY) .................... 170 LBS
MACHINE SIZE (MACHINE ONLY) ............... 20" X 23" X 12"
(7) COLLETS ( 5/8", 1/2", 3/8", 3/16", 1/4", 5/16", 1/8")
** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT **
