New * sealed* allen bradley 1785-L20E /f 1785L20E 01/10
Rockwell Automation > PLC & HMI > Controllers > PLC-5 > 1785-L20E/F
Allen-Bradley 1785-L20E EtherNet/IP PLC-5/20 Controller, 16K Word SRAM, 512 Total I/O, 512 Analog I/O, 1 DH+ Channel, 1 DH+/Remote I/O Channel, Series F
1785-L20E PLC-5/20 Processor, 16K Words User Memory, Battery-backed static RAM, EEPROM program backup option using: 1785-ME16, -ME32, -ME64, and -M100, 512 (any mix) or 512 in + 512 out (complementary) Total I/O, 512 Analog I/O, 10 ms @ 57.6 kbit/s, 7 ms @ 115.2 kbit/s, 3 ms @ 230.4 kbit/s I/O Scan Time per Rack, Communication Ports - 1 Ethernet, 1 DH+, 1 DH+/Remote I/O (Adapter or Scanner), Number of Max I/O Chassis 61, RS-232-C/422-A/423-A Configurable Serial Port, 3.3 A Backplane Current Load @ 5V.
Allen-Bradley 1785-L20E PLC-5/20 Controller provides embedded TCP/IP communication capabilities to communicate with other Ethernet PLC-5 processors and host computers. The 1785-L20E PLC-5/20 integrate Allen-Bradley architecture into the standard TCP/IP network, offering high-performance peer-to-peer communication via use of PLC-5 message instructions. The 1785-L20E processors are optimized for real-time sequential and regulatory control.

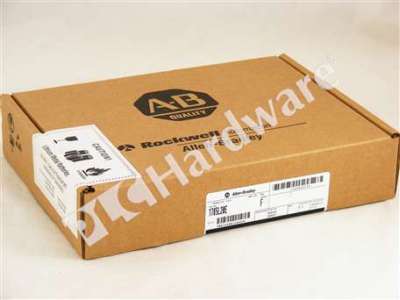

One New Factory Sealed Allen Bradley 1785-L20E Series F, PLC-5 EtherNet/IP PLC-5/20 Controller, 16K Word.
The unit is Series F, S/W F/W Rev. A.2, Pkg Date 01/29/2010.
