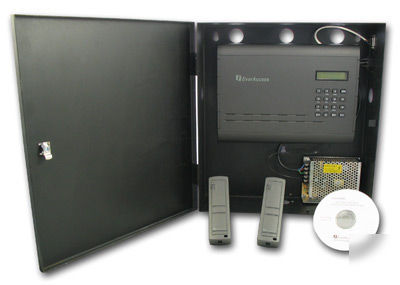

Everfocus everaccess eflp-02-1BN EFLP021BN 2-door kit
Model/Part Number: EFLP-02-1BN
FlexPack: 2 door EverAccess Control System
* Includes the Following Components
(2) ERR-871-NRB: Single Gang Readers
(1) EFC-02-1A: Flex Controller
(1) ERS-871-NRB: Desktop Reader
(1) ECD-50: 50' RS-485 Cable
Connects System Reader to Controller
(1) EPN-871-B: Metal Enclosure & PS
(24) EAC-200: Thick Access Cards
(1) EFS-1016-1A: Management Software
* Compact size, modular design make the system simple to install and easily expandable while maintaining powerful management capabilities.
* Anti-pass back capabilities .
* Supports 2 readers, expandable to 1016 max per network.
* 127 controllers can be networked together through RS485 bus or TCP/IP (TCP/IP requires additional LAN interface device).
* Built in TVS (Transient Voltage Suppressor) on both controller and readers.
* Flexible supervised input points: Up to 10 alarm inputs,18 outputs, all configurable .
* Real-time communication with PC: data is transferred in real time, ensuring up-to-the second accuracy and immediate notification if an access point goes offline.
* Uses Microsoft Data Engine (MSDE).
* Space Provided in enclosure for back up battery.
* Real-time viewing of events comes standard.
* Automatic daylight savings time adjustments.
* System can arm/disarm alarms.
* 9,999 users (16,000 events can be stored in each controller).
* Integrated Keyboard and LCD screen on controller for stand alone programming and card enroll/de-enrollment.
* System Reader connects to a PC via USB and allows easy card enrollment and RS485 bus networking.
* Mullion and System Readers utilize 125KHz proximity technology and Wiegand26 or RS232 data output.
* Mullion Readers are suitable for indoor or outdoor mounting and come with an 18 pigtail for easy installation.
* TCP/IP optional with additional LAN interface device.
* Communication : RS232 or RS485.
