New jet 2 hp r-8 taper milling/drilling machine 350018

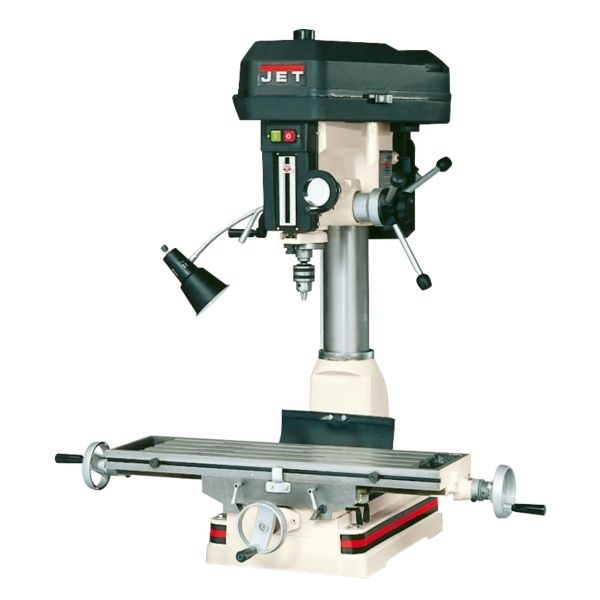

JET JMD-18, 2 HP 1-Phase R-8 Taper Milling/Drilling Machine
* One-piece cast-iron column for added support
* Belt cover - quick slide latch allows faster belt adjustment to change spindle speeds
* Base - taper allows for easier clean-up
* Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
* New positive quick-stop knob and easy-to-read internal depth gauge
Motor 2 HP, 1 Ph 230V Spindle Taper R-8 End Mill Capacity 3/4" Number Of Spindle Speeds 12 Range Of Spindle Speeds 150 - 3,000 RPM T-Slots 4 Net Weight 660 lbs. Drilling Capacity 1-1/4-in Face Mill Capacity 3-in Maximum Distance Spindle To Table 18-in Spindle Travel 5-in Quill Diameter 3-in Column Diameter 4-1/2-in Maximum Table Travel 24-in Cross Travel 7-in Working Surface Of Table 9-1/2-in x 31-3/4-in T-Slot Centers 1-13/16-in T-Slots Size 5/8-in Base Dimensions 15-3/4-in x 23-3/4-in Overall Dimensions 42-1/2-in x 39-3/4-in x 43-1/2-in
* 2 HP 1-Phase R-8 Taper Milling/Drilling Machine - 350018
* 1/2" Drill Chuck & Chuck Arbor
