> Edwards apgx-lt/NW25/st/st active linear pirani gauge

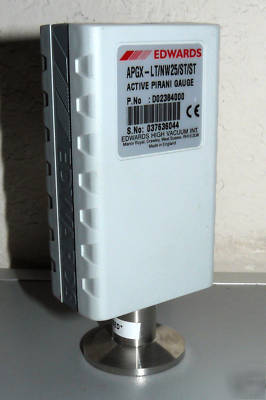

Edwards apgx-lt/NW25/st/st active linear pirani gauge
The new Active Linear Pirani Gauge is based on proven BOC Edwards Pirani technology. This new gauge has however been engineered to provide a 1 volt per decade log/linear output, together with very simple push button controls, a second set point and error diagnostics. The gauge is particularly suitable for direct integration into OEM systems, requiring no look-up tables, merely the inclusion of a simple formula for interpretation of the gauge output.
Integral electronics with 1 volt per decade linear output allows stand-alone operation and makes for easy integration into OEM control systems, with up to 100m cable runs
New diagnostics facility enables gauge to report broken filament, out of range and calibration errors
Two, easy to use, push-button adjustable set points, for process control and/or diagnostics reporting
Single pushbutton switch sets both atmosphere and vacuum
Innovative electronics design enables compliance with low emission and high immunity EMC standards
Medium and low pressure versions available
Corrosion resistant versions available
Choice of stainless steel or aluminium gauge tubes with a selection of vacuum fittings and filament materials to suit your application
FOR MORE INFORMATION PLEASE SEE: http://www.kvi.nl/~kremers/AECR2/web-content/manuals%20equipment/APGX_DATASHEET.pdf
