Electronic long reach bore gage. 2-6". to depths of 96"

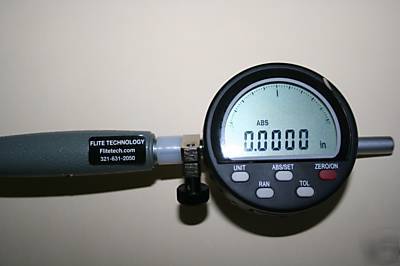

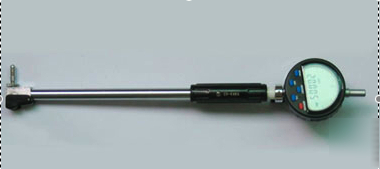

Flite Technology Inc. has been making long reach bore gages for over 25 years. Primarily for injection and extrusion barrels in plastics, food and rubber industries. However these can be used anywhere a measurement of a deep inside diameter is required. The electronic bore gage above reaches in up to 96 . Shorter units are available.
Inside diameters from 2 (50mm) to 6 (150mm). .100 travel.
Unit works on a proven principle of two diametrically opposed measuring points. One fixed and one moving. Also incorporated are two stabilizing wheels. This gage can rapidly check, ID size, ovality, taper and wear throughout the barrel or cylinder length.
Comes with spacers and extensions for close tolerance measurements. This unit will help you stay in ISO-9000 or QS-9000 standards.
This gage is simple and easy to use. This gage is accurate and meets or exceeds all international standards.
Bore gage constructed from hardened materials. Extension pole made of aluminum for ease of use and eliminates weight of extension bar interfering with dimensions. No air or electric connection required. .0005 graduation. Unit is easily adjustable. Self-centering. Inch or metric reading.
Measurements are obtained by setting the bore gage to zero to a known diameter, such as unworn section of part to be measured or ring gage etc. Other method is to set the distance between the fixed point and the moving point to the nominal ID size with a micrometer or vernier caliper and then set the unit to zero.
