Corotec hf hv transformer, 30 khz, 100V-10 kv

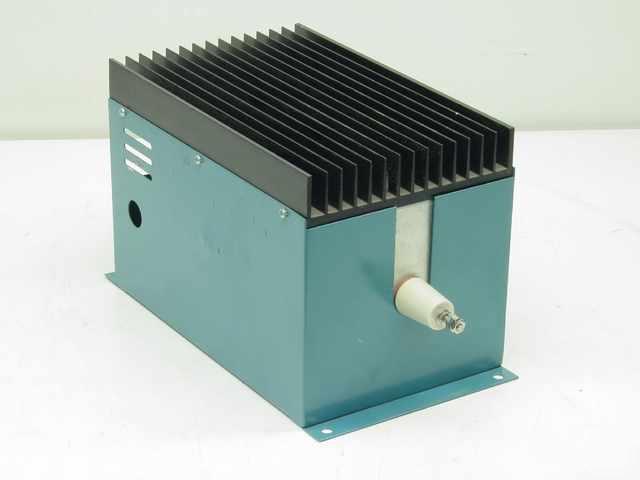

Corotec HF HV transformer, 30 kHz, 100V-10 kV
High voltage transformer on a ferrite core
* HF transformer, 30 kHz, 100 V - 10 kV, 2.5 kVA, 0.5 kW
* with a six turn primary winding!
* With a 10 Mohm oscilloscope as a load
* a far higher voltage (resonance) was had at 12 kHz.
* length: 28 cm, width: 18 cm, height: 20 cm
