0.5HP 12 hardinge hsl-5C speed lathe, hardinge compoun
0.5HP 12 Hardinge HSL-5C SPEED LATHE, Hardinge Compoun

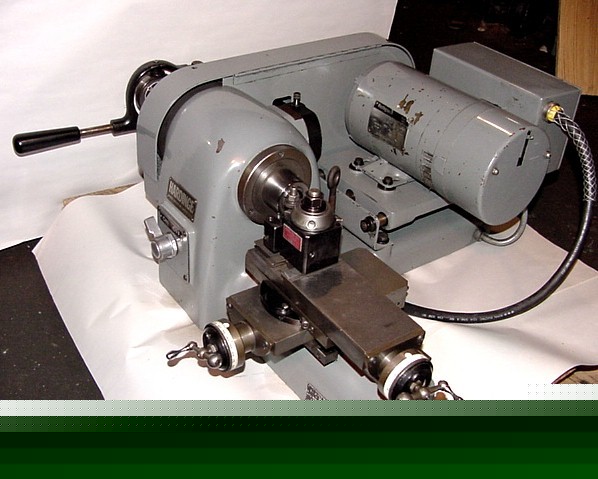

0.5HP Motor 12 Hardinge HSL-5C SPEED LATHE, Hardinge Compound with Aloris Tool Post
MODEL: HSL-59, S/N: HSL-5C-6326-T, NEW 1992
SWING OVER BED ..................... 9"
LENGTH OF BED FROM FACE OF SPINDLE . 10"
ROUND 5C COLLETS ........... 1-1/16"
HEXAGON 5C COLLETS ......... 7/8"
SQUARE 5C COLLETS .......... "
STEP CHUCKS ................ 6"
JAW CHUCKS ................. 5"
EXPANDING COLLETS .......... 3"
SPINDLE SPEEDS (3) ................. 750, 1,800, 3,000 RPM
SPINDLE TAPER ...................... HARDINGE TAPER
APPROXIMATE WEIGHT ................. 650 LBS.
APPROXIMATE DIMENSIONS ............. 34" X 34" X 55"
- HARDINGE MODEL DSC TOOLMAKER'S COMPOUND
- ALORIS AXA TOOL POST WITH HOLDERS
- 1/2 H.P. 3/60/230-460 VOLT DRIVE MOTOR WITH BRAKE
AND ELECTRICAL CONTROLS PRESENTLY 230 VOLT
THE ABOVE UNIT MAY BE PURCHASED WITHOUT SOME OF THE ACCESSORIES:
* REMOVE ALORIS AXA TOOLPOST AND HOLDERS - SUBTRACT $400
* REMOVE HARDINGE #DSC COMPOUND - SUBTRACT $1,500
