Powermatic 3-wheel stock feeder, 3/4HP, 3PH, 230V

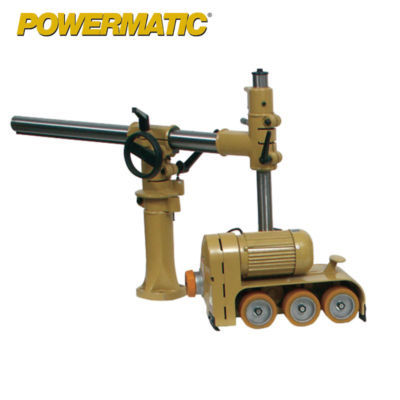

POWERMATIC 3-Wheel Stock Feeder
Stock Number: 1790814K / Model Number: PF3-EZ
With a list price of over $2,100, you will save you hundreds!
The PF3-EZ Stock Feeder can be mounted to a table saw to safely and effectively feed workpieces into the blade. The Stock Feeder has a continuous duty motor and lubricated gearbox that transmit power through roller chain and sprockets to the feed rollers, provided superior positive feeding for all types of materials. Heavy-duty locking mechanisms secure the feeder in position. The roller system is "maintenance-friendly" allowing you to replace a single roller if necessary, instead of a complete set.
* Number of Speeds Variable
* Range of Speeds 6.5 - 66 FPM
* Feed Rate variable
* Movement - Vertical Variable
* Movement - Horizontal 29.33 "
* Column Diameter 2.23 "
* Rollers 4 3/4 x 1 "
* Distance Between Rollers - Center to Center 5.93 - 5.31 "
* Maximum Height of Rollers Parallel to Tabletop 7.47 "
* Rotation Forward/Reverse
* Swing 360
* Motor Power HP
* Motor Voltage 230 V
* Motor Phase 3 Ph
* Brand Powermatic
* Overall Dimensions 51.1 x 21.85 x 31.5
* Net Weight 170 pound
