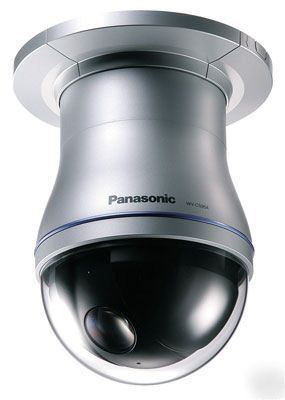

Panasonic wv-CS954 WVCS954 ptz dome camera - clearance
Manufacturer: Panasonic Model/Part Number: WV-CS954
* All-in-one color surveillance dome camera unit
* New pixel-based 128x Dynamic Range with area free natural contrast image correction - adjusts moment-to-moment changes in contrast to view subjects accurately in all areas and positions
* High horizontal resolution: 540 lines (typical) at color mode / 570 lines at B/W mode
* Minimum illumination: 0.5 lux (0.05 fc) at color mode / 0.04 lux (0.004 fc) at B/W mode
* Auto image stabilizer function where vibration or wind is a concern, e.g. passing vehicles
* Scene change detection alarms when lens is covered, spray painted, removed, or defocused
* Auto tracking function tracks moving objects and keeps them centered in the field of view - perfect for restricted areas and after hour applications
* Day/Night operation can be selected to automatically or manually switch from colour to B/W
* Privacy zone masking function
* Linear 32x electronic sensitivity enhancement function
* Digital motion detector
* 30x optical zoom lens (3.8 - 114 mm at F1.4) plus 10x electronic digital zoom (300x effective zoom)
* Digital-FLIP by memory allows automatic 180 degree turn
* Patrol Learn function (8 zone total)
* Auto panning function with 256 preset positions 360 degree endless panning
* Panning speed to 400 degrees at preset mode and 0.065 degrees super fine control in manual mode
* Image Hold function during panning
* Multiplex-coaxial or RS-485 data communication
* Four (4) alarm input and two (2) output terminals
* 16-alphanumeric character display
* Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization
* 24 V AC, 60 Hz power source
Although a higher end PTZ camera, this model serves well and has a proven performance record in highly secure installations such as airports, government sites, etc. Its fast pan/tilt speed, low-light sensitivity and day/night functionality makes this camera a top pick. If you are looking for a more cost-effective model, look at the CS874 and even the CS574 previously review for Surveillent.
