Audio modulated solid state tesla coil kit drsstc sstc
Class-E Audio Modulated Solid State Tesla Coil (SSTC) Kit
The Plasmasonic III is an advanced solid state Tesla coil (SSTC) which was specifically designed to reproduce high quality audio through high voltage plasma modulation. In otherwords, the arcs from the Tesla coil are modulated so they produce audio. The coil operates at 4MHz using Class-E switching which allows an almost silent arc with ultra high quality audio reproduction. This kit provides everything you need to build this Tesla coil with the exceptions listed below.
This kit is also designed for STEREO operation which is absolutely incredible. Order (2) for this type of application.
Click below for Instruction Manual
http:// /designfiles/class_e_instructions_rev2a.pdf

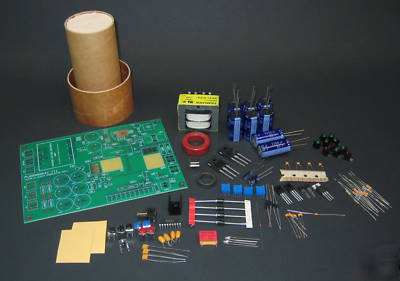

* Professionally Design and Manufactured Printed Wiring Board (PWB)
* Primary and Secondary Coilforms with Machined Disks
* Schematic with Instructions
What you will need to complete the kit:
* Soldering and PCB Assembly Skills. This is NOT A BEGINNERS project!
* Previous experience with power supply / analog circuits / troubleshooting including SSTCs is strongly recommended
* 30AWG Magnet Wire for the Secondary
* Misc. Wire for Primary / Hook-up Wires
* CD Player (For Audio Interface)
* 115VAC/50VAC Step-Down transformer (or Variac)
The designer of this kit, and author of the included plans is an amateur, not a professional. The information, both technical and safety related, provided in any included documentation should be interpreted with this distinction clearly in mind. The author hereby disclaims any liability for injury to persons or property that may result due to the construction and use of the PlasmaSonic III Kit and other high voltage apparatus. Any included documentation is for informational purposes only, and makes no claims to its completeness or accuracy. Solid state tesla coils are inherently very dangerous devices and should only be constructed and operated by individuals familiar enough with these dangers.
