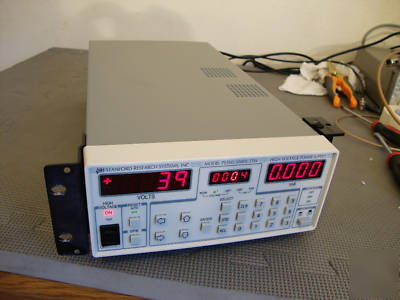

Srs stanford research PS350 high voltage power supply


The second one just sold today: 4/29 . this is number 4 out of 6 . the rack has been removed and is not included.
this is a stanford research systems ps350 fully tested perfect and guaranteed for 30 days.
OPTION 1 INCLUDED ON THIS UNIT a 500$ upgrade.
this is a High Voltage Power Supply . programmable
* +20 kV, -20 kV, +10 kV, -10 kV, 5 kV, 2.5 kV, 1.25 kV supplies
* RS-232 interface (10 kV & 20 kV models
With up to 20 kV output capability, a GPIB computer interface, and 0.001 % voltage regulation, these high voltage power supplies have become the industry standard.
There are several models to choose from, with outputs ranging from 1.25 kV to 20 kV.
Comes with 30 day ROR warranty exchange only
The PS310, PS325 and PS350 are dual-polarity, 25 W supplies, while the PS355, PS365, PS370 and PS375 are single-polarity, 10 W supplies. All of the instruments are arc and short-circuit protected with separate programmable hard and soft current limits, making it possible to use them as constant current sources.
Whichever model you choose, you ll appreciate the convenience and versatility of the PS300 Series. Two large LED displays monitor the output voltage and current being delivered to your load. Overload reset, limit and trip status, local/remote state, and high voltage enable are also displayed, so you can monitor the instrument status at a glance. A highly visible red LED always indicates when the high voltage is on.
Both GPIB and RS-232 computer interfaces are standard on all 10 W supplies. GPIB is available as an option on the 25 W instruments. All parameters can be set and read via the computer interfaces.
A rear-panel analog input allows the high voltage output to be programmed by a 0 to 10 VDC signal. Two rear-panel analog outputs provide output voltage and current monitoring capabilities. These outputs drive up to 10 mA of current and have 1 output impedance.
Vset accuracy 1 V, typ. ( 2 V, max.)
Specifications apply for >0.5 % (full load) to >1 % (no load) of full scale voltage.
10 A (typ.), 20 A (max.) (PS310 and PS325)
1 A (typ.), 2 A (max.) (all other models)
0.01 % per hr., <0.03 % per 8 hrs.
50 ppm/ C, 0 C to 50 C (typ.)
Arc and short circuit protected. Programmable voltage limit, current limit and current trip
12 ms for 40 % step change in load current (typ.)
<6 s (to <1 % of full-scale voltage with no load, typ.)
0 to +10 V for 0 to full-scale output regardless of polarity
0 to +10 Volts for 0 to full-scale output regardless of polarity
<0.3 s for 0 to full-scale under full load
50 W, 100/120/220/240 VAC, 50/60 Hz
