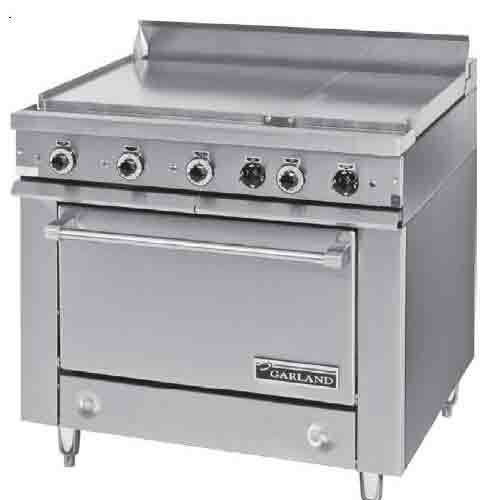

Garland 36ER32 range, 36" wide, 2 all purpose sections,
Range, 36" Wide, 2 All Purpose Sections, With 26" Oven, 36E Series
36E Series Heavy Duty Range, electric, (2) all purpose sections w/(3) thermostats, standard oven, 3-position rack glides w/(1) rack, 3" high vent riser, s/s front and front rail, black epoxy side, 6" legs, 21.5 kw (Garland)
* Heavy-Duty electric All Purpose Top models may be used as a griddle or for boiling an ideal for cooking flexibility.
* The top section plate has welded 1/2" high raised side lips to control grease.
* Model 36ER32 is a range with a full size oven, all purpose plate top. 36" wide x 36" high x 36" deep
* 36" x 24" two section top (one 12" x 24" plate & one 24" x 24" plate). Standard oven is controlled by a heavy-duty electromechanical thermostat. Top has three thermostat-controlled heat zones.
* Pilot lamp signals operation of each zone.
* Oven interior is 13.5" high x 26.25" wide x 29" deep with removable
* four-position chrome plated oven rack guides and one oven rack, front and rear stainless steel grease troughs.
* Available with convection oven base, 21.75" deep.
* Standard with stainless steel front and black powder coat epoxy sides.
* All controls are mounted at a convenient level on the switch panel.
* Electric circuit protection is provided for by circuit breakers or fuses located outside of the heat zone behind the lower kick panel.
* 36" (914mm) all purpose work top area controlled by 3 thermostats, 290/650F
