> New brand powermatic dovetailer pneumatic clamping

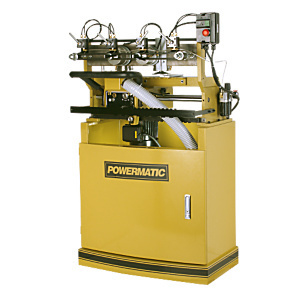

New brand powermatic dovetailer pneumatic clamping
WMH TOOL GROUP - Powermatic
1HP,1PH, 230V, PNEUMATIC CLAMPING
Four centerlines - 1", 1-1/2", 2" and 2-1/2" - create a custom appearance
Pneumatic clamping provides quick locking and unlocking of the work piece
Eccentric spindle collet for resharpened cutters
Spring loaded carriage makes for smooth, effortless dovetail cutting
Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
Extra large soft grip handle provides positive control and comfort
The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
Visual stylus and template aid in guiding the carriage
Material stops provide convenient positioning of the workpiece
Cast iron and steel construction for added stability and durability
1HP motor transfers plenty of power via the drive belt to the spindle
Minimum Work Piece Size (L x W): 7 7/8 x 2 3/8"
Maximum Work Piece Size (L x W): 59 x 16 1/2"
Center to Center Dovetail Spacing: 1, 1 1/2, 2 and 2 1/2"
Dust Port Diameter Outer Dimension: 2 1/2, rear 4"
Dust Collection Minimum CFM Required: 500 cu.ft/min
Overall Dimensions: 37 x 44 x 63
FREE FREIGHT TO THE 48 CONTINENTAL STATES\
