> 40" w finish pro fp-4075CBW belt grinder, wet type line
40" w finish pro fp-4075CBW belt grinder, wet type line
40" W Finish Pro FP-4075CBW BELT GRINDER, Wet Type Line
40" Width Finish Pro FP-4075CBW BELT GRINDER, Wet Type Line Graining / Deburring / Finishing
New Finish Pro, 40" Wet Type Double Head -
Line Graining / Deburring / Finishing Machine

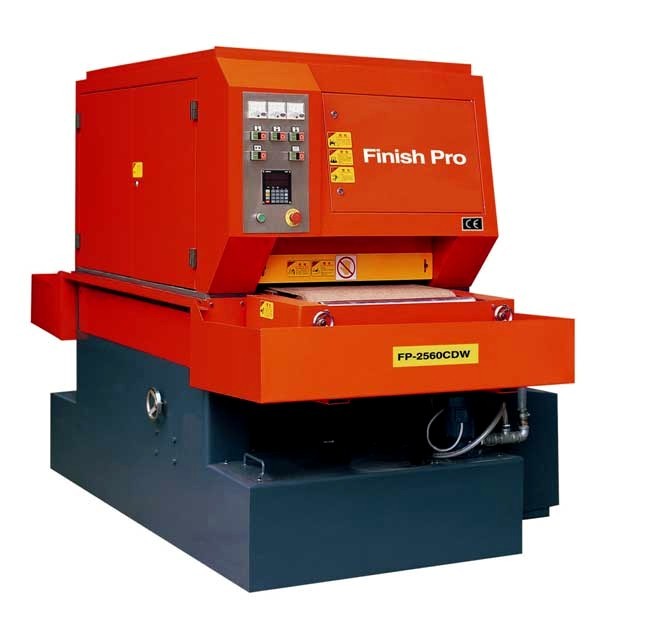

note: photo is of the smaller FP-2560CBW model
Motorized Table Lift, with digital control
Inverter drive variable Speed Conveyor
Integrated automatic coolant/filter system with auto paper feeding
Infeed & outfeed water squeezing rollers
Stainless steel construction where needed
Belt Safety Overtravel Switches
Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the
tracking system when running extremely out of parallel belts
Double Infeed & Outfeed Pinch Rolls with protective guards
Safety System with air operated disc brakes to stop sanding head
in 3-5 seconds, even in case of loss of air pressure.
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of
Quick release sanding head support for fast belt change
No dust collecting system required
Emergency stops from almost any point
Operation manual, control tags, danger signs, and warning labels
One year Industrial Warranty for parts
Contact Roller Size: 8 Diameter
Conveyor Drive Speeds, inverter drive: 6-40 FPM
Belt head motor: 15 HP, 230V / 460 V, 3-ph h
Brush head Motor: 15 HP, 230V / 460V, 3-Ph
Conveyor Motor: 3 HP, 230V / 460V, 3-Ph
Table Lifting Motor: 1 HP, 230V / 460V, 3-Ph
Coolant /filter Motor: 2 HP, 230V/ 460V, 3-Ph
Air dryer Motor: 4.5 HP , 230V/ 460V, 3-Ph
Machine Weight, approx: 6,150 LBS
Machine Dimensions, LxWxH: 78 x 116 x 76
Service Engineers for Start-Up and On-site Training
