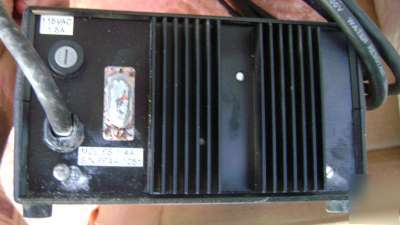

Ps-1-4A precision digital power supply rectifier -
The PS-1-4A switch mode power supply is specially designed to regulate current or voltage for tight tolorance plating processes. Model PS-1-4A is capable of delivering up to 4 amps at12 VDC with current programmed in 001 amp increments. This controller can be programmed and used as a stand alone or can be programmed and operated remotely through the serial communication port (RS 422/RS485) in a multiaxis control environment.
Applications: Precious metal plating / Reel to Reel plating / Printed circuit boards / Manual plating lines / Laboratory
WE HAVE 8 OF THESE UNITS THAT ARE IN PRISTINE CONDITION... CONTACT US ABOUT MULTI-PURCHASE DISCOUNTS!!!
Power Input: 115vac +- 10% @ 5 amp max
Power Output: No load 20 VDC out / Full load 12 VDC @ 4 amps
Resolution: in current regulated mode 0.001 amp to 4.000 amp in voltage regulated mode 0.00 volt to 12.00 VDC
Accuracy: Better than 1% at full load.
Serial Interface: RS 422 / RS 485 reconnectable for RS 232 300 Baud to 4800 Baud
Data Storage: Nonvolatile EEPROM Parameters are retained when power is removed. No Batteries needed. Data retention is 10 years minimum.

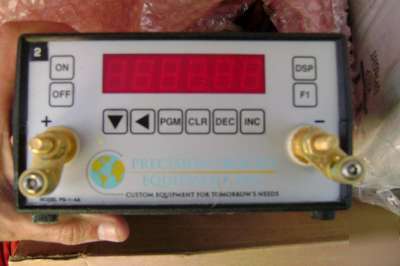

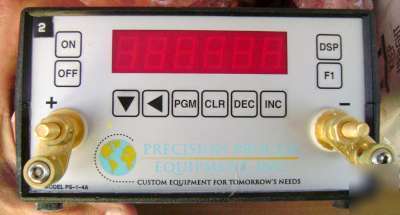

Operation Interface: 6 digets, 0.6" high bright red modified alphanumericLED display. Simple 6 key programming: keys to turn ON and OFF, 2 key for functions. DSP key displays output voltage in current mode or output current in voltage mode. F1 is reserved for future expansion.
Physical Dimensions: 6.35" W x 3.3" H x 6.5" D with 8" 1/4 - 20 studs extending through the front panel.
