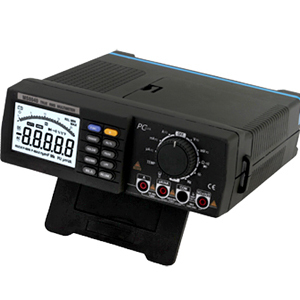

New brand MS8040 4 1/2 smart desktop digital multimeter
Brand New!MS8040 4 1/2 Smart Desktop Digital Multimeter
MS8040 four and a half-bit high precision digital multimeter MS8040 desktop for schools, research institutes tailored to a professional lab instrument, using three kinds of power supply with a voltage 10 V resolution and 0.01 A the current resolution of DC accuracy up to 0.05%, with a true RMS measurement functions and RS232 interfaces; low-pass filtering function, can effectively eliminate high-frequency AC voltage measurement noise.
Low-pass filtering the voltage 10 V resolution
With a non-contact current measurement (reprovision clamp head)
Logic frequency / duty cycle measurement of capacitance measurements from 0.01nF to 220mF Peak Hold
Random software can display, recording and analysis of measurement data
Three kinds of power supply specifications:
DC Voltage: 200m/2/20/200/1000V 0.05%
AC Voltage (True RMS): 200m/2/20/200/750V 0.5%
DC Current: 200 /2000 /20mA/200mA 0.15%, 10A 0.5%
AC Current (True RMS): 200 /2000 /20mA/200mA 0.8%, 10A 1.0%
Resistance: 200/2K/20K/200K/2M 0.1%, 20M 0.5% 200M 2.0%
Capacitance: 20n/200n/2u/20uF 1.2%, 200u/2000uF 5.0%
Linear Frequency: 5Hz z ~ 100KHz logic Frequency: 20Hz ~ 220MHz 0.06%
hFE: 1 ~ 1000 Diode test Continuity test
RS232C PC interface (optional USB interface)
Dimension: 238 230mm (L) 83mm (H)
