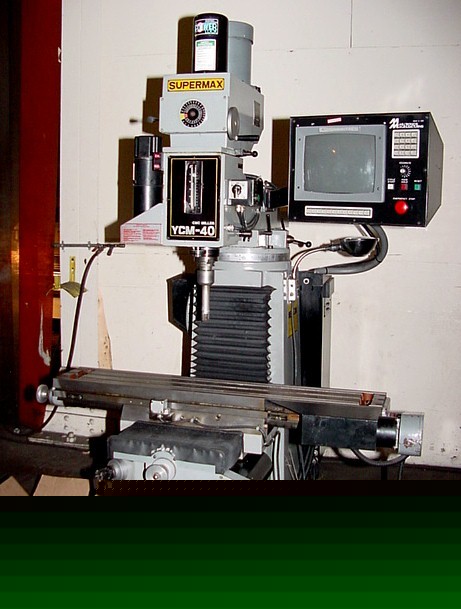

Supermax-milltronics ycm-40 3 axis cnc vertical mill
SUPERMAX-MILLTRONICS YCM-40 3 AXIS CNC VERTICAL MILL
SUPERMAX 3-AXIS CNC VERTICAL MILL
MODEL: YCM-40, S/N: 010461, NEW: 1992
TABLE SIZE ............................ 49" x 9"
TABLE CROSS TRAVEL (X) ................ 28"
SADDLE TRAVEL (Y) ..................... 15-1/2"
VERTICAL KNEE TRAVEL (MANUAL) ......... 16"
QUILL TRAVEL (Z) ...................... 5"
QUILL DIAMETER ........................ 3.94"
SPINDLE TAPER ......................... #40 STD
LOW ............................. 80-500 RPM
HIGH ............................ 500-4200 RPM
TABLE LOAD CAPACITY ................... 550 LBS.
APPROXIMATE FLOOR SPACE ............... 73-1/8" FB x 104 LR
APPROX HEIGHT ......................... 85"
APPROX WEIGHT ......................... 2,950 LBS
MILLTRONICS CENTURION I CNC CONTROL
3-AXIS, CRT, CANNED MACHINING CYCLES, GRAPHICS,
3D MOLD & POCKET MILLING, G CODE, REPEAT,
MIRROR, ROTATE & ROUND, MATH HELP & MUCH MORE
RS 232 PORT & FLOPPY DISK DRIVE
BALLSCREWS & SERVO MOTORS FOR THE THREE AXIS
