Trion air boss T2600 t 2600 electrostatic ionizer
The T Series has the ability to clean contaminated indoor air and recirculate it back to the work area, reducing energy costs by not having to exhaust conditioned air to the outside. Any of the T Series can be installed free hanging or ducted for source capture.
PLEASE CLICK ON LINK FOR ADDITIONAL INFO TRION AIR BOSS T2600
* Totally enclosed fan cooled motor
* Electrical component box mounted out of air stream
* Optional multi-purpose plenum
* Motor HP options for added static pressure
* Ceramic insulators out of airstream for increased reliability
* Extra depth collector cell more dirt holding capacity and stays on line longer
* Spiked ionizer no ionizing wires to replace, reducing maintenance and replacement cost
* High efficiency up to 95% on single pass and 99% on double pass option
* Permanent ionizer/collector elements no filter replacement cost; just wash, dry and reinstall
* Low pressure drop lower energy cost to operate compared to media and cartridge units
* Hinged access no tools required for quick and easy service
Suspended, wall, frame or duct mounting
TEFC, sealed ball bearings, 1725 RPM, thermal protected continuous duty, UL listed
Belt driven, double squirrel cage, forward curved with sealed ball bearings
1600 - 3200 CFM (factory set at 2600)
On/off switch with indicating light
(2) Aluminum mesh 18.4"L x 18.4"W x .88"D

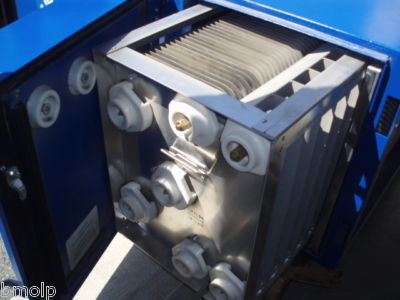

(2) Electronic Ionizer/Collector Cells
High Frequency solid state design
To 99% for Double Pass (calculated)
16 gauge welded galvanized steel
Horizontal - standard right to left (left to right optional)
