Sebra pirf tipping/welding system catheter manufactur
Sebra PIRF Tipping/Welding System Catheter Manufactur

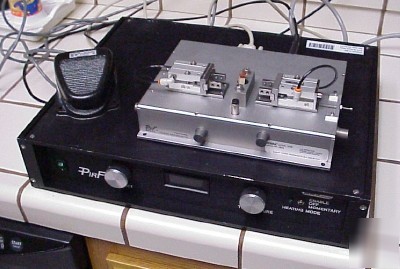

Sebra PIRF Tipping/Welding System for Catheter Manufacturing
In excellent working Condition used
The PIRF II System, utilizing precision energy control and heat placement, is specifically designed for small profile catheter manufacturing. A proprietary mold design concentrates heat to an area as small as 1mm for tipping and butt weld applications. The temperature control and precise heat placement of this system are especially critical in controlling flash and achieving quality welds of braided materials as well as materials with significant durometer differences.
Compact footprint saves clean room space
Repeatability, high quality results
Quantifiable and validate-able process
High production first pass yields
Quick and Easy tooling changes
Air cooled/no water chillers
Closed loop temperature feed back
Operator safe no hot spots or pinch points
High and Low force Platforms
Easy front panel programming
Low friction pneumatic air cylinders and slides
Proprietary low mass mold design
Temperature repeatable to within 1 C
Single/Multi Lumen Applications
Marker Band Embedding/placement
Specializing in Custom Applications
The Generator/Controller measures 17 x 12 x 6 in (43 x 30.5 x 15 cm) and weighs 30 lbs (13.6 kg)
The Platform measures 11 x 9 x 2 in (28 x 23 x 5 cm) and weighs 6 lbs (2.7 kg).
Input is 110V 50/60 Hz or 220 V 50/60 Hz. 6.78 MHz
