Allen bradley contactor 100S-D250EZJ22C bad coil

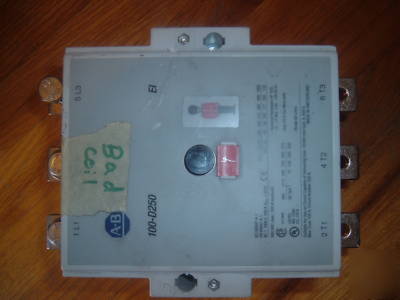

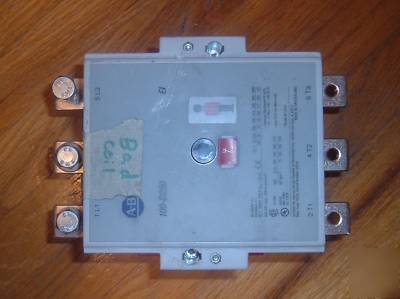

1 Contractor Allen-Bradley # 100S-D250EZJ22C, In used condition with BAD COIL based on the fact that it was in a bulk sale with no box or hardware other than what is shown.
http:// /en/epub/catalogs/3377539/5866177/6388287/5736558/9133148/tab3.html
Switching of 3-phase motors AC-2, AC-3
Click to enlarge - 100S-D-80-6
Preferred values according to IEC 60072-1.
For conventional DC coil only. The pickup winding must be interconnected with the N.C. late-breaking auxiliary contacts.
Higher kW rating only applies to contactors with electronic coil.
If standard cross-stamped front-mount auxiliary contacts are required, remove the letter "B" before the letter "C" in the Cat. No. Example: Cat. No. 100S-D95 22BC becomes Cat. No. 100S-D95 22C.
Signal voltage of the cat. no. 100S-S electronic interface Ue: 24V DC/Ie: 15 mA
Pick-up voltage: 13.0V DC 30.2V DC
Drop-out voltage: -3.0V DC +5.0V DC
For More information or Pictures Please message me and I will be happy to answer any Questions.
