Rebuilt tschudin htg-400 od cylindrical grinder

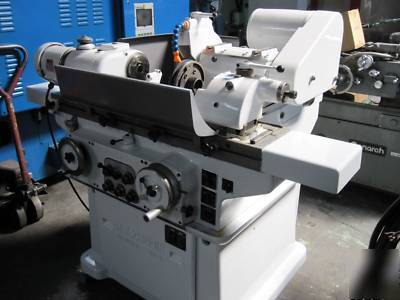

Rebuilt Tschudin HTG-400 Cylindrical Grinder
8" X 16" TSCHUDIN "SWISS" HIGH PRECISION
RANGE OF PLUNGE FEED RATES, INF. VARI. .. 0.005" TO .200"
SWIVEL OF UPPER SLIDE, EITHER SIDE OF ZERO .... 7 DEG.
MAX. TRAVEL OF LOW SLIDE BY INFEED SCREWS ....... 2"
TAPER OF WORK CENTER (W/REDUCTION SLEEVE) .... #3MT
APPROXIMATE DIMENSIONS ................... 63" X48" X 54"
APPROXIMATE MACHINE WEIGHT .................. 4,000 LBS
