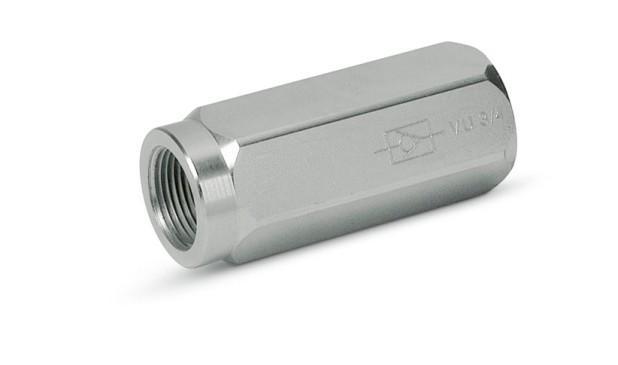

Hyd 1" fixed setting throttle c/valve 160L/min 2 hole
Hyd 1" Fixed Setting Throttle Check Valve 160 L/Min With 2 Calibrated Holes
HYDRAULIC 1" FIXED SETTING THROTTLE CHECK VALVES WITH 2 CALIBRATED HOLES - V0630/2F
Flow is free in one direction and fixed in the reverse one. Flow is fixed as flow adjustment depends on the throttling hole diameterS.
Applications : Connect V to the pressure flow and C to the actuator. Flow is free from V to C and fixed in the reverse one. Throttling is obtained through the 2 calibareted holes, the diameter of which are 1mm each.
* Internal Parts: Hardened and ground steel
* Cracking Pressure 0.4/0.7 Bar
