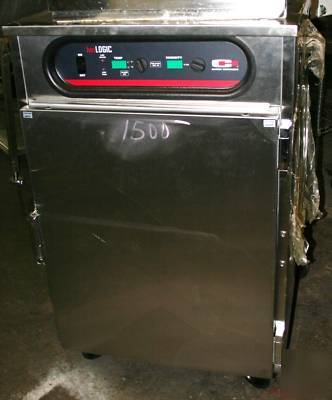

Carter hoffmann humidified holding cabinet warmer HWU8
CONSTRUCTION...Riveted aluminum
double wall cabinet construction. All seams
turned in to eliminate raw edges.
CABINET MATERIAL...All aluminum,
double wall, insulated construction; .063
brushed aluminum exterior and anodized
BASE FRAME...Full depth caster bolsters
with perimeter supports welded to bolsters.
CASTERS...5 diameter casters with rubber
tread (3 casters on HWU5). Four swivel
casters. Two casters fitted with brakes.
INSULATION...2 thick high density
continuous wrap-around type fiberglass
DOOR...Double panel aluminum door; .063
brushed aluminum exterior and stainless
steel interior. Filled with 2 thick high
density fiberglass insulation. Removable
condensation trough mounted on bottom.
HINGES...Adjustable edge mount hinges
GASKET... High temperature magnetic
HANDLES... Four recessed pull grips on
DOOR HANDLE...Full length integrated
door handle. Side-mounted transport

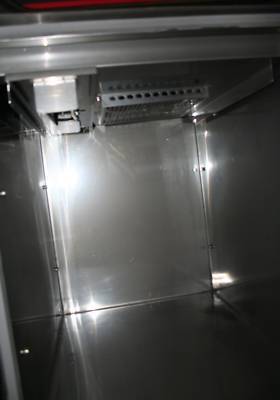

TRAY RACK ASSEMBLY...Removable
anodized aluminum ducts. HWU: removable
16 gauge stainless steel universal slides,
fully adjustable at 1-1/2 spacing. Standard
HWC: fixed angle slides on 1-1/2 centers.
THERMOMETER...Dial type thermometer
with remote sensing bulb and sensing bulb

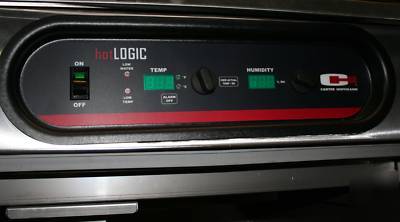

CONTROLS...Dial type controls. One dial
for heat and one dial for humidity level.
WATER RESERVOIR...Water bath slides
out for manual filling. Clear amber color high
temperature polycarbonate pan allows for
viewing of water level. Slides out for easy
filling & removal. Easy to remove for
cleaning and inexpensive to replace.
HWU18, HWC36, HWU14 & HWC28: 5.7
quart (5.4 liter) capacity. HWU5, HWC10,
HWU8 & HWC16: 3.8 quart, 3.6 liter
HEAT & HUMIDITY SYSTEM...Top mounted
heater with one 1000 watt coiled incoloysheathed
heating element. High impedence

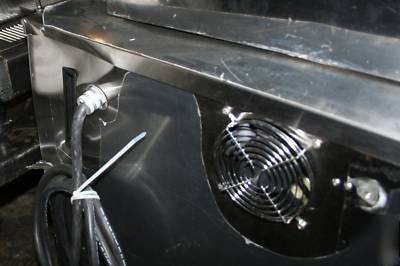

protected, internally cooled fan motor. Single
cooling fan. Water reservoir with immersed
1000 watt heating element. Blower fan
circulates air and humidity. Extra large
surface area to quickly recover humidity
level. Full range thermostats and on/off
switch with power indicating light. Energy
Star on all models except HWU5 & HWC10.

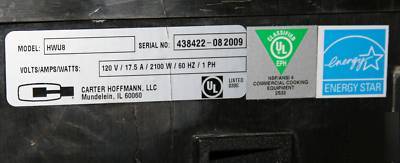

Operates on 120 volts, 60 cycle, single

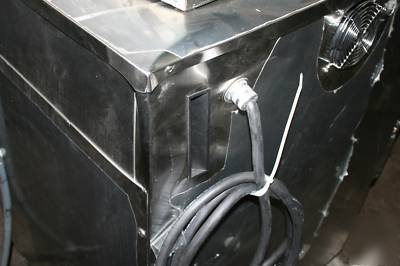

phase, 2100 watts, 17.5 amps. Ten foot
rubber cord with 3 prong grounding plug.
PERFORMANCE...Capable of heating to
200O F (93O C). Preheat to 160O F (71O C) in
approximately 25 minutes. 90% maximum
