Sensorswitch power pack pp-20 120V relay sensor switch
Power Pack - Relay Circuit Protection

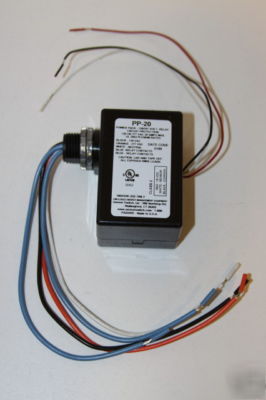

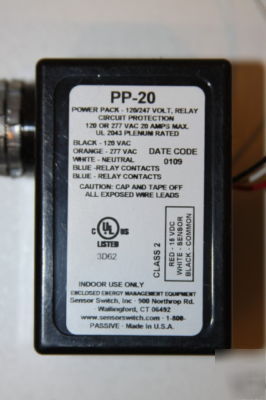

SensorSwitch brand power pack PP-20
Brand New/unused item without box.
Power Packs are the heart of the Low Voltage Sensor System. The PP20 transforms 120, 240 or 277 Volts to Class II 15 VDC to power the remote sensors. Utilizing our Patented Relay Circuit Protection the PP20 also switches the lighting load On and Off. This method has been tested to over 400,000 cycles at rated load! Although Plenum Rated, the elongated mounting nipple allows for the PP20 to be mounted either directly through a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one PP20. Multi-circuit control can be handled by multiple PP20's, or via 2-Pole Power Packs (PP20 2P) and Slave Packs (SP20). PP20's can be wired continuously hot (line side), or on the switch leg (load side) without nuisance delays upon turn on.
Patented Relay Circuit Protection (Tested to over 400K cycles)
Mounting: 1/2" knockout in fixture or junction box
Wiring: Class II: 18 AWG, up to 2,000 ft
Operating Voltage: 120, 240, or 277 VAC
Output Voltage: 15 VDC, 150 mA
Relative Humidity: 20 to 90% non-condensing
Operating Temp: 14 to 160 F (-10 to 71 C)
Storage Temp: -14 to 160 F (-26 to 71 C)
