Gn nettest laserprecision td-1000D fiber mm otdr TD1000

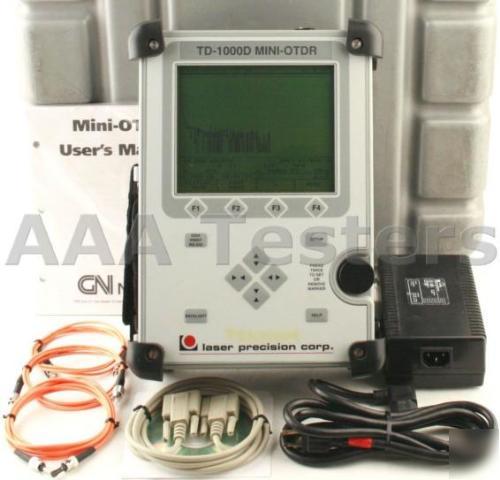

* Laser Precision TD-1000D MultiMode OTDR
* Interchangeable FC Connector For Meter
* Laser Precision Corp. PC-3000 OTDR Emulation Software
GN NETTEST FiberWizard Laser Precision TD-1000D Fiber Optic Multimode MINI-OTDR with Built in Optical Power Meter
GN Nettest Laser Precision TD-1000A FiberWizard MINI-OTDR Single-mode 1310nm & 1550nm. GN Nettest Fiber Wizard TD1000A/HR Mini-OTDR Optical Time Domain Reflectometer Laser Precision Division is a HP GN Nettest TD1000A/HR Fiber Wizard Mini-OTDR Optical Time Domain Reflectometer, Laser Precision Corporation
Center Wavelength1310/1550nm +/- 20nm
Max Spectral Width < or = 20nm (Singlemode)
Fiber Type: Single Mode 9/125u
Distance Range: 1.2km; 4km; 9km; 20km; 40km; 81km; 164km
Data Resolution: 0.313m, 0.625m, 1.25m, 2.5m, 5m, 10m, 20m
Distance Accuracy: 0.0025% X distance +/- distance resolution
Vertical Linearity: +/- 0.1 dB/dB to within 8 dB of the 98% noise floor
Real Time Display Update2/secpnd
Dynamic Range1310nM : 30.5dB 1550nM: 27.5dB
Measurement Range1320nM: 23.5dB 1550nM: 20.5dB
Initial Reflective Deadzone (typ)3m @ 1310nM and 1550nM
Initial Non-Reflective Deadzone (typ)15m
Display: 7 inch diagonal LCD with backlight
Power Meter 10dBm to -65dBm
Light SourceModes: CW, 1kHz & 2kHz
Wavelength: 1310nM & 1550nM
Connector type: Universal Connector Interface with ST connector
Data Storage: 1.44MB Floppy Drive
Operating Temperature 0 C to 40 C
Storage Temperature -20 C to +60 C
Operating Altitude: 5,000 ft
Mechanical & General Specifications: Size11.5" X 8.25" X 4.5"
