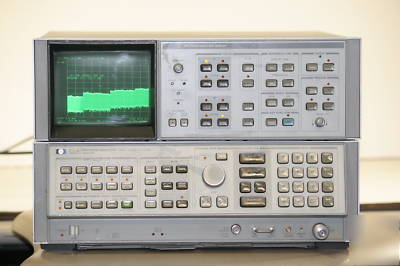

Hp 8566B spectrum analyzer, 100 mhz to 22 ghz
The HP / Agilent 8566B is a high-performance spectrum analyzer for bench and ATE system use. The 8566B operates from 100 Hz to 22 GHz and up to 325 GHz with external mixers. The exceptional frequency stability of the Agilent 8566B make measurements with a 10 Hz resolution bandwidth easy. This narrow resolution bandwidth yields sensitivities to -135 dBm. Excellent frequency stability, sensitivity, and frequency-reference accuracy combine to allow very accurate measurement of small signals in the presence of large ones. Typical applications include EMC testing, broadband signal surveillance, and component stimulus-response testing.
THESE UNITS WERE PULLED FROM A WORKING ENVIRONMENT AND THEY ARE IN GREAT COSMETIC CONDITION.
** UNDER CALIBRATION UNTIL 12/10 **
** WILL INCLUDE FRESH CALIBRATION WITH CERTIFICATE UPON PURCHASE **
