Graphic whizard vivid micro uv coater

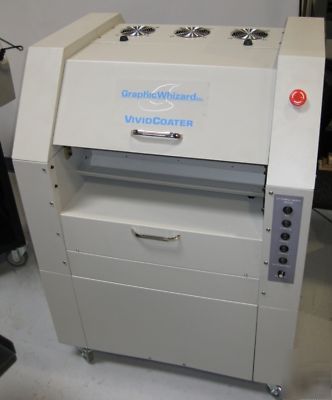

Graphic Whizard Vivid Micro UV Coater
This is an out of box Demo UV Coater that has never been sold to an end user. At the offered price, this is an excellent value priced at $1,000 off the original retail price of $9,999.
The VividCoater Micro TM is a low maintenance ultra violet cured coating system that produces a high quality finish to the printed sheet.
The VividCoater Micro TM s foot print is less than 3 x3 (90 cm square)and has a variable speed of up to 1800 sheets per hour. This machine runs on 220V/60 hz (20 amp circuit) and can be moved easily through any standard door opening.
By producing richer and more vibrant colours on digitally or offset printed pieces the VividCoater Micro TM offers the on-demand print market the opportunity to have more effective and expressive printed products at a very low cost per page.
The Micro is easy to operate and allows for variable coating thickness control and variable speed control. With two different UV solutions ready to run at all times the operator can switch between gloss and matte finishes in minutes.
Coater Size (LxWxH): 31.75x33x43.75 (806x838x1110mm)
Unlimited (standard tray holds up to 18 (457 mm) but can be extended to hold up to 36 (914 mm)
100% UV curable/reverse roll/flood
* Coats stocks from 157 gsm (60# cover/7.4 pt) to 385 gsm (146 # cover/18 pt)
* Variable speed; up to 1800 sheets per hour
* Two separate UV pumping stations allow two different 9 lb. (4.1 kilo) buckets of solution to be available at all times
* Maximum coating width 20.75 (530 mm)
* Polished chrome metering and bottom rollers
* Air cooled direct focused UV lamp
* Forward/reverse controls for easy clean up
