> Eagle 414-16-1-18 sink,1 compartment, coved corner, 20"

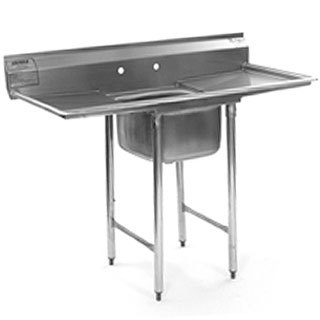

Eagle 414-16-1-18 sink,1 compartment, coved corner, 20"
Sink,1 Compartment, Coved Corner, 20" x 16" Bowl, 18" Drainboard Left, 18" Drainboard, Right, 14" Deep Bowl
Sink, One Compartment, 16/304 stainless steel 19" front-to-back x 16"w x 14"D drawn bowl, 9 1/2" 16/430 stainless steel backsplash & 18" double drainboards, galv open frame base w/side crossrails, NSF
* All Eagle sinks bearing the NSF Certification Mark are built in compliance with the National Sanitation Foundation Standard Number 2
* Sink bowl is heavy gauge type 304 stainless steel
* All bowls have deep-drawn one-piece seamless construction using state-of-the-art hydraulic presses
* 13 1/2" water level 16 1/2" flood level
* Drainboards, backsplash and euro-style edging, rolled rims are heavy gauge type 430 stainless steel
* 9 3/4" high backsplash includes 1" upturn and tile edge for easy installation and feathering to wall/splash surface
* Welded areas are blended to match adjacent surfaces with continuity of satin finish
* Legs are 1 5/8" diameter heavy gauge galvanized tubing with plated 12-gauge gussets and high impact corrosion resistant fully adjustable bullet feet
* Legs gusset assemblies are welded adjacent to sink bowls, providing increased stability and maximum weight support where needed
* Drainboards, when provided, are integrally welded
* Water supply is 1/2" IPS for hot and cold lines
* Faucet holes are 1 1/8" punched on 8" centers
* Height: 44 1/2" (including 9 3/4" backsplash)
