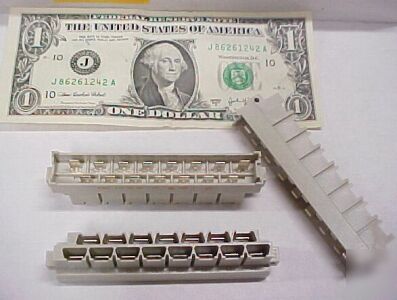

Box of 20 kensington harting din connectors w contacts
http:// /Search/Refine.aspx?Ntt=*09*+*06*+*015*+*2922*&N=1323038&Ntx=mode%2bmatchall&Ns=P_SField&OriginalKeyword=09+06+015+2922&Ntk=Mouser_Wildcards
The information (below) was acquired from the company's website. The file was in some kind of odd format which didn't copy very well, so there might be a typo or two:
Technical characteristics: Type H
14+1 leading contact (position z 32) 13+2 leading contact (position z 4 and z 32)
Clearance: >4,5 mm (only valid for type H with 15 contacts)
Creepage: >8,0 mm (only valid for type H with 15 contacts)
The working voltage also depends on the clearance and creepage regulations dimensions of the pcb itself and the associated wiring, according to the safety regulations of the equipment.
Test voltage (U r.m.s.): 3,1 kV (only valid for type H with 15 contacts)
Insulation resistance: >1012 O
The higher temperature limit incudes the local ambient and heating effects of the contacts under load - 55 C ... + 125 C
Electrical termination: male connector
Connector with faston 6,3 x 2,5 (faston blade width x wire gauge) according to DIN 46245 and DIN 46247
Solder pins: for pcb connections 1,6 + 0,1 mm according to DIN EN 60097 female connector
Solder pins for pcb connections 1,6 + 0,1 mm according to DIN EN 60097
Cage clamp terminal 0,14 - 1,5 mm2
Insertion and withdrawal force: <90N
Mouldings: Thermoplastic resin, glass-fibre filled, UL 94-V0
Contact surface: Hard silver plated
The current carrying capacity is limited by maximum temperature of materials for inserts and contacts including terminals. The current capacity-curve is valid for continuously, not when interrupting current-loaded contacts of connectors when simultaneous power on all contacts is given, without exceeding the maximum temperature.
Control and test procedures according to IEC 60512, part 3.
Type H standard contacts have a silver plated surface. This precious metal has excellent conductive properties. In the course of a contact s lifetime, the silver surface generates a black oxide layer due to its affinity to sulphur. This layer is smooth and very thin and is partly interrupted when the contacts are mated and unmated, thus guaranteeing very low contact resistances. In the case of very low currents or voltages small changes to the transmitted signal may be encountered. This is illustrated below where an artifically aged contact representing a twenty year life is compared with a new contact.
09 06 015 2922 Printed board connector
Contact arrangement: Rows z and d
First mating contact: Two first mating contacts
Performance Class: Performance level 1 as per IEC 60603-2
Clearance/Creepage: 4,5 / 8,0 mm min.
