New 300W/360V/30A electronic/dc load,cv/ci/cp/cr,bat/pc

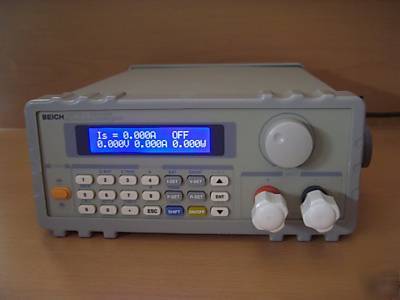

"300W / 360V / 30A ELECTRONIC LOAD"
BATTERY LOAD /CAPACITY TEST & PC REMOTE CONTROL FUNCTIONS
. CV / CI / CP / CR 4 main functions;
. Additional battery load / capacity test function;
. RS232 PC interface ready ( An optional purhcase of software for remote measurement function );
. LCD's clear and direct display with backlight
. Over voltge / current / power and temperature protection;
. Auto control of cooling fan's speed;dc
. Short circuit / dynamic test function;
. 10 group memory for different parameter settings;
. keypad / control knob locked function;
. multi-units communication function is possible;
. Input Voltage: 1.5V to 360V;
. Constant Resistance: 0.1 ohm to 4K ohm;
- Constant Voltage (CV), 1mV, +/-0.1% +0.03%FS;
- Constant Current (CI), 1mA, +/-0.2% +0.3%FS;
- Constant Power (CP), 1mW, +/-1% +0.1%FS;
- Constant Resistance (CR), 1m ohm, +/-1% +0.8%FS;
. Battery Load / Capacity Test:
- Max measurement capacity: 999A/H;
- Timer range: 1 to 60000 sec;
. Dimension: 310 x 225 x 100mm;
. Power Supply: 220V /110V AC selectable (1 +/-10%), 50/60Hz ( 1+/-5%);
. Working Temperature / Humidity: 0 to 40C, <=90%RH;
. Accessories: user manual / Power Cord
