> Dc-dc power module HW100F61 in:36-75V@3.5A out:3.3V@20A

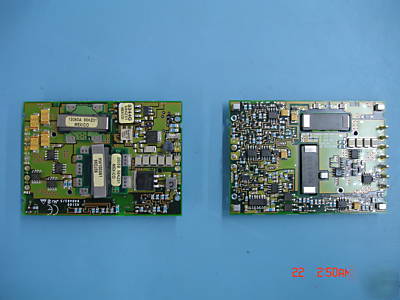

Dc-dc power module HW100F61 in:36-75V@3.5A out:3.3V@20A
FOR MORE DETAILED INFORMATION ON THESE UNITS PLEASE FOLLOW THIS LINK TO THE DATASHEET: http:// /download/?url=http%3A%2F%2F %2Fpdf-datasheets%2FDatasheets-39%2FDSA-772124.pdf
The HW100 Series Power Modules are open frame (no case, no potting) dc-dc converters that operate over an input voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. The modules have a maximum power rating of 100 W at a typical full-load efficiency of 90%.
