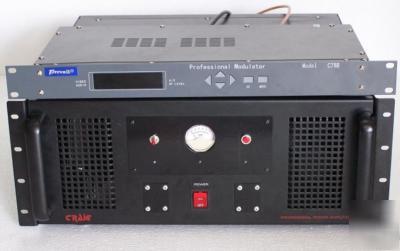

Tv broadcast transmitter 150-200 watt uhf 470-860 mhz
High Quality TV Transmitter at the RIGHT price
This is a professional affordable UHF TV video transmitter in NTSC, PAL, SECAM and other standards. This low cost transmitter is made for small TV stations. It transmits in UHF band from Channel 21 to Channel 69. Sound carrier are at 4.5 Mhz, 5.5 Mhz, 6 MHz and 6.5 MHz Adjustable. It is made for World Wide market and any country in the World. This video transmitter is excellent for mobile operations or Station Base. A perfect UHF TV antenna for this transmitter you can find in my store. Using high gain antennas can increase the range. The video modulator is micro processor controlled and allows you to adjust the audio level, video level, A/V level, and RF output by using the soft touch buttons. The output board has a lot of extra overhead for excellent reliability.
The amplifier is a high gain wideband design and never requires tuning for operation in the 470 to 860 Mhz range.
This video transmitter has 180Watt Peak Sync Power output
* No Tune Broadband Full Channel UHF BAND
* COMPATIBLE WITH NTSC, PAL, SECAM and other standards TV SYSTEM
* 4.5 Mhz, 5.5 Mhz, 6 MHz and 6.5 MHz AUDIO CARRIER
* Modulation Level 1-32 adjustable
* Adjustable Power Output 1 - 32 Level
* F or "N" ANTENNA CONNECTOR
* VIDEO GAIN CONTROLLED BY MICROPROCESSOR
* 180 Watt Output Power Peak Sync
* REVERSE POLARITY PROTECTED
* SPECIAL GA-AS TECHNOLOGY USED
* WIDEBAND LINEAR POWER STAGE
