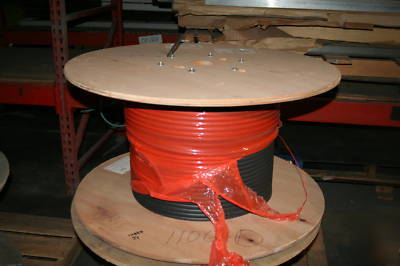

Lapp olflex tray ii 16/12C cable - 1015'
LAPP-USA - OLFLEX TRAY II CABLE 16/12C - 16 AWG (28/30) 1.5 mm2 - 1015'
OLFLEX Tray II is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellend flexibility making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor.
Industrial plant expansions, Automotive plants, Tray wiring, andywhere that VNTC cables are used
Oil resistant pressure extruded PVC jacket for improved flexibility
Easier to pull than standard tray cables minimizing labor costs
UL TC-ER approval to reduce material cost. No condui is needed.
Black numbered conductors for easy identification
UV resistant and direct burial
Number of Conductors (Includes Ground): 12
Nominal Outer Diameter: 0.565" (14.4 mm)
Approx. Weight: 220 lbs/mft (328 kg/km)
Min. Bend Radius for Installation: 7.5 x cable diameter
Temperature Range: -40 C to +90 C: UL/CSA TC , -40 C to +90 C: UL AWM
Nominal Voltage: 600V - TC, 1000V - AWM, 1000V - TC Wind Turbine (WTTC)
Conductor Stranding: Fine Wire
Color Code: Black with White numbers plus Green/Yellow ground
UL: Type TC-ER (Exposed Run) or DP-1
UL AWM, Oil Res I, Wet Rating 75 C UL 83
Class 1, Div 2 per NEC article 336, 392, 501
Submersible Pump (14 AWG & Larger: 2 to 7 conductors)
CSA: c(UL) Type TC and CIC FT4
