#HT23S ii hitachi-seiki cnc turning center #25741

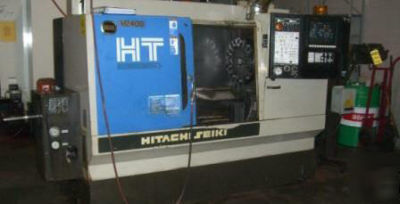

#HT23S II HITACHI-SEIKI CNC TURNING CENTER
New 1995, Serial NO. HTS2951HL, Model HT23S II
Hydraulic Tailstock - Chip Conveyor
Power Tool Clamping - 10 Position Turret
Hole Thru Spindle...................... 3"
Bar Diameter, Maximum.................. 2.5"
Swing Over Bed, Maximum................ 15"
Maximum Turning Diameter............... 10"
Turning Length, Maximum................ 24"
X-Axis Cross Slide Travel.............. 7.9"
Z-Axis Carriage Travel................. 24.8"
X-Axis Rapid Traverse.................. 787 IPM
Z-Axis Rapid Traverse.................. 945 IPM
CuttinG Feed Rate...................... 0.0001-19.685 IPR
Taistock Spindle Taper................. #5 MT
Spindle Speeds, Range.................. 20 to 3600 RPM
Spindle Nose........................... A2-8
Overall Dimensions, L x W.............. 9' x 6'
Overall Height......................... 5'4"
Weight Approximately................... 9460 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $17.500.00
