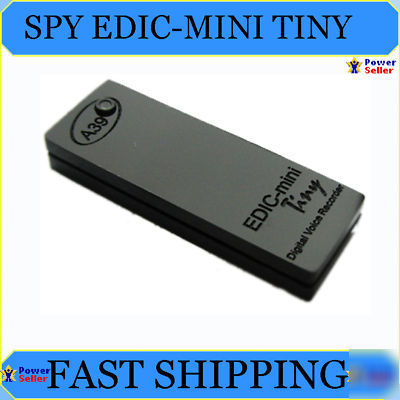

Edic-mini tiny A39 300HR digital spy voice recorder usb
Edic-mini Tiny A31 !
Edic-mini Tiny A39
This Edic-Mini is a ultra tiny digital voice recorder by TSM that is intended for professional recording voice messages for up to 35 hours per charge.
Hiding in the palm of your hand is this small polished case that has only one button, and will record crystal clear audio. This tiny digital audio recorder is super small and can record from 150 to 1,200 hours of audio recording.
It comes in your choice of black polished or matte half transparent plastic with the optional adding of color tints like red or black.
The tiny digital audio recorder uses very low power, has a wide frequency range (100- 10000Hz), a wide dynamic range, and a highly sensitive built-in microphone.
For the hard to please person in your life, let the pleasant warm of the natural wood, an ornament on the front side that you can customize, outstanding technical characteristics, and a presentable mahogany box make the A39 the best choice for an extravagant gift.
* To save the recorded messages as standard sound files
* To use the DVR as a flash-disc of 128-2048 MB, depending on a model, as well as to store and transfer files.
* There is an opportunity to update the DVR firmware using the software.
Edic-mini A39 - 150 hour - 275$
Edic-mini A39 - 300 hour - 369$
Edic-mini A39 - 600 hour - 510$
Edic-mini A39 - 1200 hour - 699$
* In the presence of recorders Series A31 300 hours of these colors:
black polished, but also of frosted translucent plastic with the possibility of adding different colors (black, red, yellow)
* Our product differs from other gadgets that are available in the market:
* Simplified functionality (recording only, the opportunity of listening to the recordings through the headphones is ruled out, you can listen to the recordings after uploading them onto a computer) and one button control
* High sensitivity microphone (operating distance is 7- 9 m )
* Built-in USB interface (exchange speed up to 5.5 Mb)
* Long recording duration (from 150 to 1200 hours depending on memory capacity)
* Timer to start recording at the preset time
* The DVR has a Voice Activating System (VAS) which effectively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory during pauses, but the time intervals remain. When downloading records to PC, the pause length can be either restored (as silence) or passed depending on the settings made.
* The DVR working modes are indicated with the LED indicator.
* The DVR's is operated with a push button.
* The DVR can act as a flash-disc, which enables storing and transferring any data on it.
* The DVR can be used simultaneously for both recording messages and as a flash-disc, with the distribution of memory space for message recording and flash-disc being set by the user.
* The DVR makes it possible to record by both daily timer (time of recording start and stop is set) and once timer (date and time of recording start and stop is set).
* To secure the data, a password may be set in the DVR, which prevents another user from unauthorized access to the DVR content and settings.
* Every record made with the DVR is marked with the recording start time and date, and has a digital signature to define the DVR, which was used to make the record, and possible modification of the record file.
* The DVR software provides a multilingual support.
* Minimum System Requirements: Windows 98/2000/XP/Win7/32 bit operating system Windows Vista; Pentium II 333 MHz; 32 MB of RAM.
Note: 64 bit Windows Vista and Win7 until our software is not compatible!
* Dimensions: 2.16" L (55 mm) x .79" W (20 mm) x .31" H (8 mm)
* Recording duration from 150 to 1,200 hours
* Recording per charge: Up to 35 hours
* Battery life in record mode (sampling rate 8 K Hz, without compression): 42hours
* Battery life in record mode with VAS (audio signals below threshold): 140 hours
* Power supply: 85 mA/hr rechargeable battery
* USB connector (the rechargeable battery charges while connected to a computer)
Edic-mini Tiny A39
* Operation manual for DVR, with the supplement enclosed
