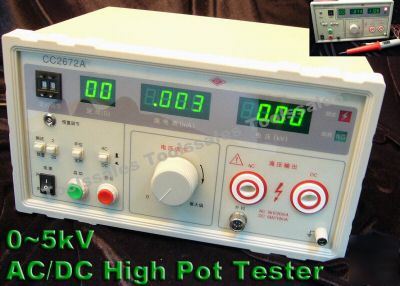

0~5KV 20MA ac dc transformer high voltage pot tester
This unit is design to test the transformer High voltage insulation. The Simple yet powerful feature allow use to select the maximum voltage output and the withstand time of the test by the easy selectable knob and switch. Included high voltage test Probe and build in remote switch ( manual mode) to activated the test via the probe button. Internal protection circuit protect against short circuit.
0~5kV AC or DC output adjustable test voltage
0~99sec timer for Timer test mode
Remote switch in High voltage Probe for manual testing.
Preset leakage limited, Alarm if over the limited.
Output Voltage: 0~5kV AC or DC
Current Display: 2 Range, 2mA/20m AC, 2/10mA DC.
Output Frequency: 50Hz or 60Hz Sine wave ( based on 220V 50Hz AC power input or based on 110V 60Hz AC power input)
Current Meter Accuracy: +/-5%Timer Range: 1~99 Sec
Input Voltage: AC power 200-220V or 110V, 60/50Hz, 130 W typical 250W maximum Please let us know which voltage you need.
1 x 2672A High Pot testing Unit
