> New reliance electric s-2000 duty master 1/3HP ac motor
New reliance electric s-2000 duty master 1/3HP ac motor

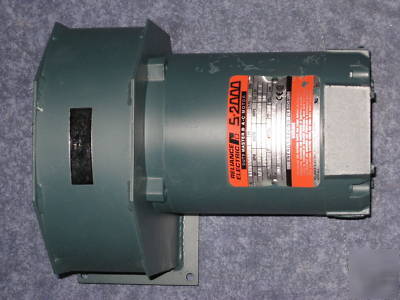

Reliance Electric S-2000 Duty Master 1/3 HP AC Motor
Frame - Full seam weld. Optimum thickness for better heat dissipation. Ends turned for excellent fit to end shields. Frames primed with alkyd primer for corrosion resistance
End Shields - Die cast aluminum with metal bearing bore inserts to provide extra strength and security. Moisture drains are provided in each end shield providing drainage when mounted vertical or horizontal
Base - Heavy duty steel welded to frame
Rotor - Cast aluminum with integrally cast fins for excellent cooling. Keyless design, heat shrunk to shaft, turned for proper air gap, and dynamically balanced, providing for a superior, more efficient electrical design
Stator - Specially treated class "F" and "H" wire used with full slot liner material. Coil heads laced for improved mechanical strength. Stator tested before and after assembly providing optimum electrical integrity
Insulation - Non-hygroscopic, baked-on insulation assures superior electrical strength.
Hardware - Zinc chromate plated, high strength, with hex heads. Plating provides exceptional corrosion protection
Bearings - Double shielded. Oversized. Permanently lubricated with moisture resistant grease. Rugged - holds up in tough applications
Conduit Box - Oversized, top mounted, conduit box with F1/F2 conduit connection and grounding lug for ease of installation and safety (F1/F2 conduit box in the end shield for TENV)
Shaft - High strength, carbon steel
Connection Diagram - Permanently attached to motor
Single-Phase - Electronic switch mounted in conduit box (or on end shield for TENV) providing convenience and reliability
Certifications - U.L. component recognition and CSA approved
Energy Savings Design - Provided by electrically matched rotor and stator which reduce primary and secondary losses
Leads - Permanently marked providing fast identification
