Denver instrument company ir-100 moisture analyzer

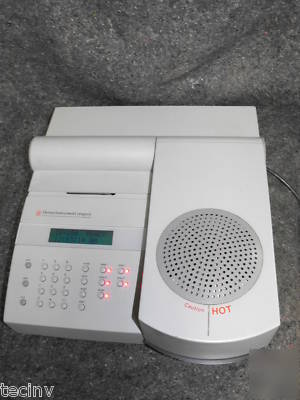

Denver Instrument Company IR-100 Moisture Analyzer
The Denver Instrument Company IR-100 Moisture Analyzer is a unique system that combines the advanced technology of an infrared dryer with the precision weighing of an analytical balance. Yet, it is designed to make testing as easy and convenient as possible.
* Two line backlit LCD display (16 characters)
* Silicon sealed keyboard with numeric keys and 12 function keys
* Adjustable heater (30 Celsius 210 Celsius/86 Fahrenheit 410 Fahrenheit) Electronic temperature control with platinum sensor. Four quartz infrared heaters
* Two-step drying capability
* Selectable standby temperature
* Multiple Calculation Modes: % Moisture Content; % Solids Content; % Volatiles; % Moisture Content, Dry Basis; % Solids Content, Dry Basis
* High resolution balance (.001g) for high accuracy results (.01%)
* Three choices for end of analysis: Manual, Time-out, Slope (change of weight with time) or dry to constant weight.
* Six different sets of drying parameters
* Internal Printer, 40 column dot matrix; Prints test result, date, time, drying procedure, sample number, and other test data; Prints intermediate values (if selected)
* Standard Interfaces: RS-232 Serial output; Centronics-type parallel output
* Measurement Method: Infrared radiation and detection of weight loss

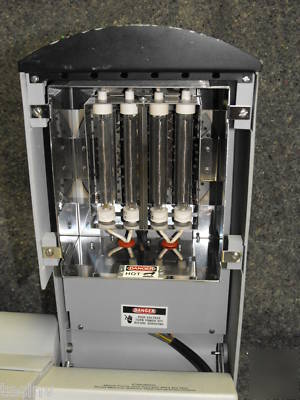

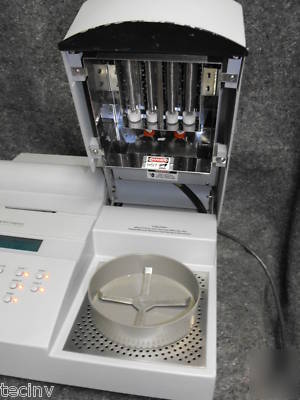

* Heat Source: Four quartz infrared heaters
* Temperature Setting: 30 Celsius 210 Celsius (86 Fahrenheit 410 Fahrenheit) in one degree increments
* Temperature Sensor: 1000 ohm Platinum RTD
* Temperature Setting: One or two temperature steps per procedure

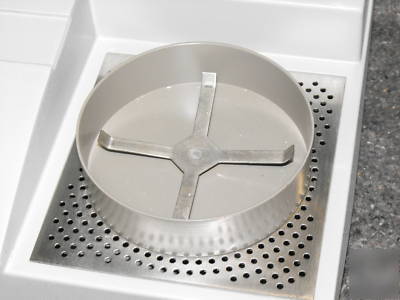

* Weighing Pan: 100mm (4 diameter)
* Readability: 0.01% or 0.001 grams
* Recommended Working Range: 0.1 99.9% moisture
* End Analysis Modes: Time out: 1 99 min. Slope (constant weight); 0.01 9.99% of initial weight over 0.1 99 min.
* Units of Results: % moisture, % solid, or % volatiles (wet or dry basis)

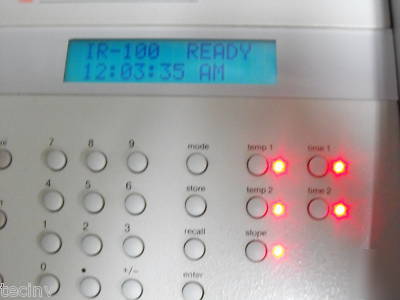

* Display: Two line (16 characters) backlit LCD
* Controls: Silicon sealed keyboard (numeric keys and 12 function keys)
* Programmability: 10 drying procedures
* External I/O: Serial output and centronics type parallel output
* Printer: Integral 40 column dot matrix; results only or intermediate value style printouts.
* Dimensions: 15 W x 7 H x 16.5 D (375mm W x 177mm H x 420mm D)
