Omega om-pltc thermocouple datalogger

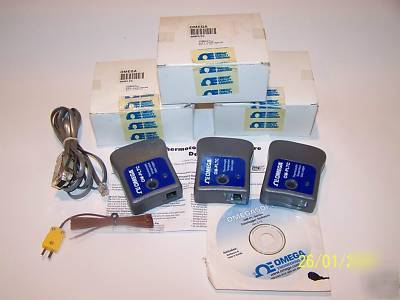

Here are 3 OMEGA OM-PLTC data loggers with Omegasoft OM-PL Series Datalogger 2.13 Software and (6') RS-232 cable, I am including some information from there web page but if you need to know more you can go to These retail for $135.00 Ea. Software about $55.00 totaling $460.00 here is a good time to save some money.
The OM-PL Series data loggers are versatile devices that can be used for a wide range of logging applications. Each data logger is capable of sampling data as fast as once per second or as slow as once every 18 hours. The data logger can stop recording when memory becomes full, or rollover for continuous recording. The start of recording is software selectable to be immediate, delayed, or initiated when the datalogger door is closed. The data loggers can also be used to monitor high and low alarm events, that indicate if the recorded data passed above and/or below the user selected threshold. The alarm events are stored separately from the data samples and are not affected by data rollover. When the recorded data passes the high or the low alarm threshold, the data logger records the time of the alarm. When the recorded data returns to within the acceptable range, the data logger records the duration of the alarm. Up to 50 such alarm events can be recorded. The datalogger has a visual indication of an alarm condition without the need to connect to the computer.
The data loggers have an internal real time clock/calendar. This real time clock is used to record the time stamps for data samples and alarm events. This real time clock is independent of your computer clock, and can be set separately, or set to match your computer clock. The data loggers provide a high level of data security. They have physical security, where the data access door is locked, and software security. It is virtually impossible to falsify the sample data or alarm information of the OM-PL Series dataloggers. The data loggers are extremely low power. Under normal operating conditions, a 9 volt alkaline battery will last from 18 months to 2 years.
OM-PL Series data loggers have the capacity to store over 10,000 readings. Simply connect the datalogger to your PC s serial port and use the available Windows software to set up the parameters for your recording session. Once the datalogger is set up you can disconnect it and put it in the field to record data. The data logger door can be locked on to prevent accidental or intentional disruptions of the recording session. When recording is completed, reconnect the data logger to your PC and download the recorded data using the Windows software. The Windows software allows you to view recorded data in text or graphical format. Models are available to record internal temperature and an external temperature channel (OM-PLT2), two external temperature channels (OM-PLTT), temperature, humidity and dew point (OM-PLTH), temperature and pressure (OM-PLPT), AC current and voltage (OM-PLCV), 4 to 20 mA (OM-PL420), and internal temperature and an external thermocouple input (OM-PLTC).

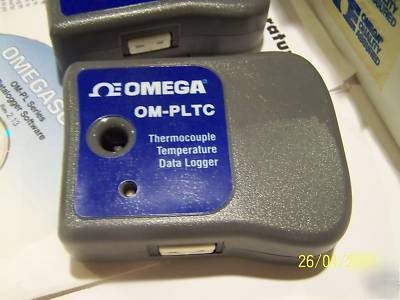

OM-PLTC THERMOCOUPLE DATALOGGER
Channels: two channels, one for internal ambient temperature
and one for external thermocouple input
Measurement Capacity: 10,750 points for both internal
temperature and external thermocouple input
Thermocouple Types (External Channel):
J, K, T, E, R, S (software selectable)
Thermocouple Temperature Ranges:
Type J; -79 to 732 C (-110 to 1350 F):
Type K; -140 to 1038 C (-220 to 1900 F):
Type T; -148 to 349 C (-235 to 660 F):
Type E; -59 to 560 C (-75 to 1040 F):
Type R; 0 to 1449 C (32 to 2640 F):
Type S; 0 to 1449 C (32 to 2640 F)
subminiature female thermocouple jack
Accuracy (Thermocouple Channel):
Resolution (Thermocouple Channel): 0.05 C (0.1 F)
Accuracy (Internal Channel): 1 C ( 2 F)
Resolution (Internal Channel): 0.05 C (0.1 F)
for thermocouple and ambient temperature
Calibration: single point offset calibration available
through software for both internal
ambient channel and external thermocouple channel
