Lars 500CG tool & cutter grinder, single lip pantogrind
Lars 500CG TOOL & CUTTER GRINDER, SINGLE LIP PANTOGRIND

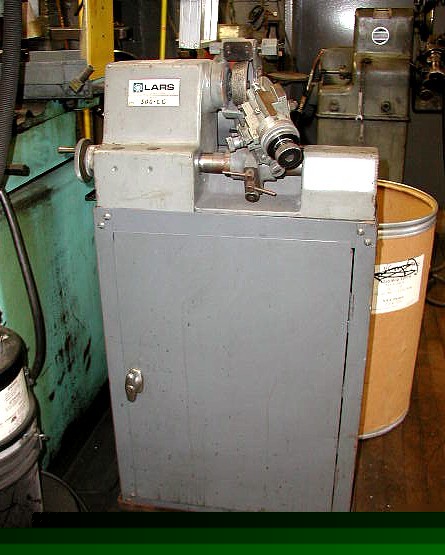

Lars 500CG TOOL & CUTTER GRINDER, SINGLE LIP PANTOGRINDER, MADE IN USA
LARS GORTON UNIVERSAL CUTTER GRINDER
MODEL: 500CG S/N: 86G76406 NEW: 1986
** WILL GRIND SINGLE FLUTE CUTTERS - HIGH SPEED STEEL,
WILL GRIND BALL NOSE, CORNER RADIUS, CONICAL, CONICAL WITH
A BALL AND A SQUARE NOSE SINGLE FLUTE CUTTERS. MANY
PREDETERMINED ANGLES, RADII OR DIAMETERS MAY BE OBTAINED.
MAX. COLLET SIZE ............................. 1/2"
COLLET HOLDER PIVOT .......................... +/- 15 DEG.
NUMBER OF INDEXES ............................ 12
LONGITUDINAL LINEAR MOVEMENT ................ 3.375"
LONGITUDINAL LINEAR MOVEMENT ................ 1.5"
CROSS LINEAR MOVEMENT - TO RIGHT ............ 1/2"
CROSS LINEAR MOVEMENT - TO LEFT STOP ........ 0.044"
CROSS LINEAR MOVEMENT - TO LEFT W/O STOP .... 1/2"
VERTICAL PIVOT - BETWEEN STOPS .............. 90 DEG. MAX.
VERTICAL PIVOT - STOPS REMOVED .............. 180 DEG. PLUS
HORIZONTAL SHAFT PIVOT ...................... 50 DEG. MAX.
FINE MICROMETER ADJUSTMENT .................. 0.312"
COURSE CLAMP ADJUSTMENT W/DIAMOND ........... 1.120" MAX.
DIAMETER .................................... 4"
WIDTH ....................................... 1- 1/2" MAX.
BACK (FOR MOUNTING .......................... 3/8"
MAX. SPEED .................................. 5,730 SFPM
MOTOR H.P. ................................... 1/4 H.P.
MOTOR SPEED .................................. 1,725 RPM
SPINDLE SPEED ................................ 5,500 RPM
ELECTRICS .................................. 115 VOLTS/1/60
APPROX. DIMENSIONS ........................ 24" X 35" X 13"H
APPROX. WEIGHT ............................... 150 LBS.
MULTI-SLIDE DESIGN TOOL HEAD W/MICROMETER POSITIONING
SLIDE LOCKS FOR EACH ADJUSTABLE SLIDE MEMBER
INDEPENDENT ADJUSTMENTS FOR RADIAL & END CLEARANCES
** PARTS & SERVICE AVAILABLE FROM THE LARS CORP. IN RACINE,
*** NEW PRICE TODAY IS $9,880 **
** LIKE NEW CONDITION & APPEARANCE **
Click Here For More Lars Machines
