> DSO5200 pc usb digital oscilloscope 200MS/s 200MHZ 2CH

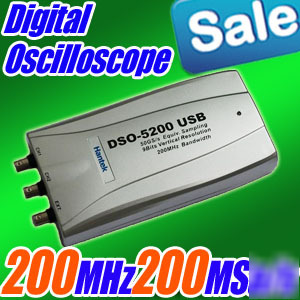

DSO5200 pc usb digital oscilloscope 200MS/s 200MHZ 2CH
PC Based 200 MSa/s Digital Oscilloscope
200MHz Analog Bandwidth, 200MS/s Real-time Sampling
DSO-5200 uses USB that supports plug and play, with
DSO-5200 is easy to use. It is intuitive and easy to understand.
You can change DSO-5200 screen size as you need.
Various data format processing
DSO-5200 can save waveform in the following formats: text file, jpg/bmp
graphic file, MS excel/word file.
1.The Digital Oscilloscope DSO 5200
10mV ~ 10V/div @ x1 probe(10mV, 20mV, 50mV,
100mV, 200mV, 500mV, 1V, 2V, 5V,10V/div1,2,5
35Vpk (DC + peak AC < 10 kHz, without external
2ns/div ~ 1h/div(2ns,4ns, 10ns, 20ns, 40ns, 100ns,
200ns, 400ns, 1us, 2us, 4us, 10us, 20us, 40us, 100us,
200us, 400us, 1ms, 2ms, 4ms, 10ms, 20ms, 40ms,
100ms, 200ms, 400ms, 1s,2s, 4s,10s,20s,40s,10m,20m,40m,1h /div 1-2-4 sequence)
Equivalent sampling:2ns/div ~ 4us/div
Real-time sampling: 10us /div ~ 400ms/div
Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow,
negative pulse width, rise time (10%~90%), fall time
(10%~90%), positive duty cycle, negative duty cycle
Time/frequency difference, voltage difference Frequency
No external power source required.
