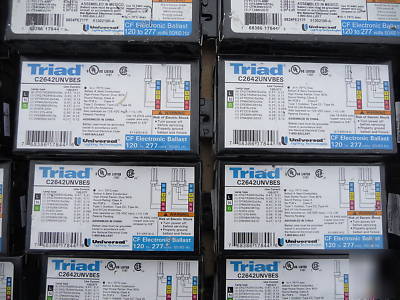

Compact fluorescent ballast - triad C2642UNVBES

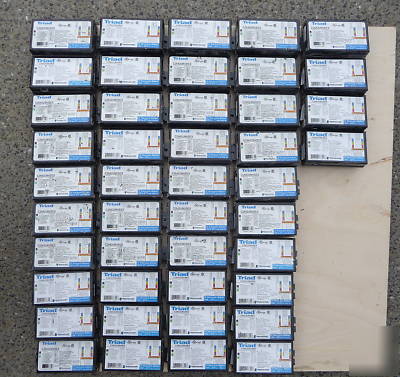

These ballasts were replaced with Dimming Ballasts and have never been energized. Since they arrived with the fixtures we do not have any of the original boxes.
Description: Electronic compact fluorescent ballast(s) for (1) CFM42W/GX24q or (1) CFTR32W/GX24q or (2/1) CFQ/TR26W/GX24q or (1) CFS28W/GR10q (2D) 4-pin lamps or (1) FC9T5-22W or (1) FC12T5-40W or (1) CFS38W/GR10q or (1) CFM36W/2G10 or (2/1) FT24W/2G11
Line Voltage: 120vac to 277vac, 10%, 50-60Hz Programmed Rapid Start
High Power Factor Series Lamp Connection
* ANSI measured wattage; 25 C ambient; benchtop; lamps base up Application and Performance Specification Information Subject to Change without Notification.
Meets ANSI Standard C82.11 No PCB's
Meets FCC Part 18 (Non-Consumer), Limits for EMI/RFI CULUS listed (Class P)
Operating Frequency Range: Above 60 kHz Type 1 Outdoor, Type CC, Type HL
Auto-Reset Shutdown Circuit per NEMA Recommendations -Both lamps should be replaced at end of life -Lamp relights upon insertion in socket
ME version: Input Terminals L N G intended for one supply connection only
Application: Physical Parameters Minimum Starting Tempe
ature: 0 F, -18 C Overall Length: 4.94"
Maximum Case Temperature (@ tc): 167 F, 75 C Width: 2.31"
Sound Rated: A Mounting: 4.61"
Lead configuration: Height: 1.00"
xxx = BE -Bottom Exit Weight: 0.57 lbs or BES -Bottom Exit with Studs (2" on center) Qty/Carton: 20 or ME -Multi-Exit Color: BE/BES-White or MES -Multi-Exit with Studs (2" on center) ME/MES-White
Remote Mounting 12 feet Can Material: Metal
Also operates on 125VDC input, (+)L (-)N
