Square d ATV18U09M2 altivar 18 ac drives 1/2 hp 0.37KW

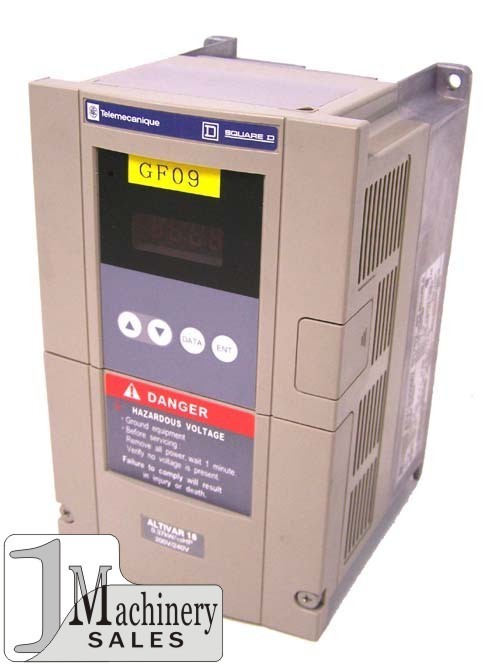

Square D ATV18U09M2 ALTIVAR 18 AC Drives 1/2 HP 0.37kW
Made by Square D Telemecanique
Output I max. transient (1mn): 3.2A
Output frequency: 0.5 ? 320 Hz
The ALTIVAR 18 drive for 3-phase asynchronous squirrel cage motors incorporates the latest technological developments.
Robust and compact, and conforming to international standards, the ALTIVAR 18 drive is a universal product. Created from our experience over several generations of drives, its functions meet the requirements
of most applications including:
? Ventilation and air conditioning
Factory Preset Values and Extension of Functions
The ALTIVAR 18 drive is ready to use right out of the box for the majority of applications. Its new algorithms for sensorless flux vector control and auto-tuning ensure optimum operation on standard motors worldwide. An integrated keypad is used to modify parameter settings to suit your application. Two hierarchical levels of access ease parameter configuration:
? Level 2: Extension of functions
It is always possible to restore parameters to their factory preset values.
Electromagnetic Compatibility (EMC)
The ALTIVAR 18 drive has built-in filters eliminating the need for additional expense. The incorporation of filters in the drive simplifies installation and reduces the cost of conformity for CE marking. The filters conform to EN 61800-3/IEC 1800-3, domestic and industrial environments.
The main functions of the ALTIVAR 18 drive are:
? Starting/stopping and speed control
? Dynamic braking and braking to standstill
? Protection of motor and drive
? Automatic catching a spinning load with speed search (flying restart)
? Automatic limiting of operating time at low speed
The RS232C standard PC Connection option is used for configuration and adjustment using a personal
? Prepare a configuration in the design office without connecting the drive
? Back up settings on diskette or hard disk
? Load settings to the drive remotely
http://ecatalog.squared.com/pubs/Motor%20Control/AC%20Drives/Altivar%2018/ATV18%20Drives/8805CT9701.pdf
Overall Dimensions 4.5 x 7.5 x 5 in
