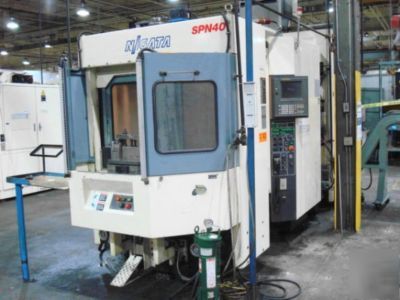

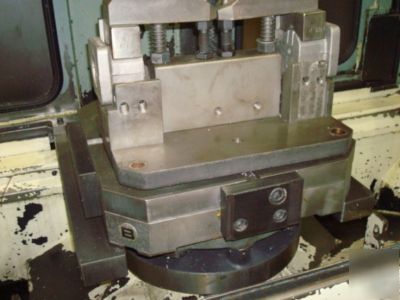

Niigata SPN-40 CNC Horizontal Machining Center
X-Axis Travel ......................... 23.6"
Y-Axis Travel ......................... 22.8"
Z-Axis Travel ......................... 22.0"

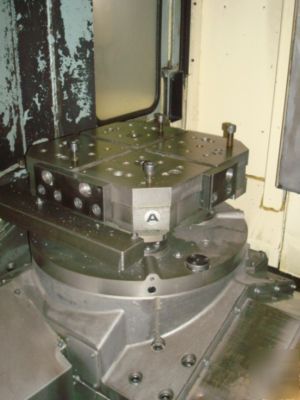

Pallet Size x 2 ....................... 15.75" x 15.75"
Max. Weight on Table .................. 880 Lbs.
Spindle Nose to Table Center .......... 5.9"-27.95"
Spindle Center to Table Top ........... 3.15"-25.98"

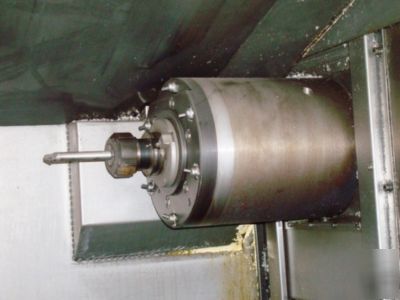

Spindle Speed Max. .................... 12,000 RPM
Spindle Drive Motor ................... 30 HP
Rapid Traverese ....................... 1575 IPM
Cutting Feed Rate ..................... 1181 IPM
Max. Tool Diameter .................... 3.74" / 7.87"
Max. Tool Length ...................... 13.78"
Max. Tool Weight ...................... 22 Lbs.
Machine Dimensions .................... 173" x 86"
Machine Height ........................ 104"
Approx. Weight ........................ 20,943 Lbs.

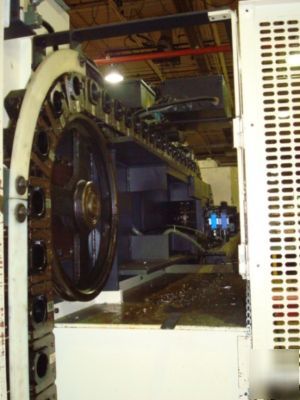

60-Position Automatic Tool Changer
