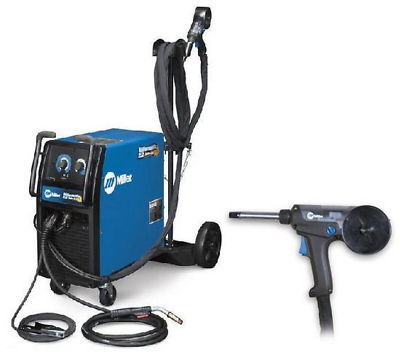

Millermatic 212 autoset spoolmate 200 dual cyl 951177
The Millermatic 212 W / Auto-Set is Miller's newest Auto-set mig welder .The Millermatic 212 welds up 3/8" in a single pass has Auto-Set , Gun-On Demand, and Infinite voltage control . The Millermatic 212 uses the Spoolmate 200 .
Millermatic 212 Auto-Set MIG welder welds material from 22 gauge up to 3/8 in (9.5 mm). It's easy to set up, offers a wide window of operation, and delivers 210 amps of power for semi-industrial applications. The Millermatic 212 Auto-Set offers superior performance on thin and medium gauge metals, with smooth arc characteristics throughout its operating range.
With single-phase power plus a factory-installed running gear/dual cylinder rack, the Millermatic 212 Auto-Set easily goes where it's needed. The system adds efficiency and productivity to light fabrication work, garage/body shops, and farms and ranches. Its cost and operating economics make it a smart choice. Its ease of use makes it a very effective machine for the hobbyist.
Welds 14 gauge to 1/4" aluminum
Compatable with Spoolmatic 15A/30A spoolgun with wire feed speed control on the gun. Saves time by reducing trips back to the machine.
Gun-On-Demand- simply pull the trigger for either gun and you're ready to weld . No wasted time installing modules and using gas valve kits.
Heavy duty aluminum drive roll system
* Thermal Overload Protection shuts down unit and activates over temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when fault is corrected and unit cools.
* EZ-Access Consumable Compartment and Parameter Chart - convenient new flipdown compartment that provides fast access to parameter chart and consumables.
* Larger work area - now with longer 15-ft M-25 gun.
* Less weld cleanup with Active Arc Stabilizer - patented Miller design provides excellent starts proven superior to the competition.
* 230 V operation: 160A at 24.5 VDC, 60% Duty Cycle
* 15 ft , M-25 MIG gun 250 amps for.030/.035 in wire
* New! Factory-installed running gear with EZ-Change Low Cylinder Rack
* Smith argon mix regulator/flow gauge with hose
* Dual groove quick change drive rolls for .030 & .035
* Extra contact tips , information
* Miller Spoolmate 200 Spoolgun
MILLERMATIC 212 AUTOSET SPEC SHEET
Amps Input at Rated Output,
The Spoolmate 200 Series is designed specifically for Home Hobbyist and Light Fabricators . It's the most
Hook up recommendations :
Millermatic 212 Autoset, 251 & 252
Direct Connect ( plugs into the 10 pin port)
Need's adapter cable # 195287 ( no remote WFS)
160 A @ 60 % duty cycle( .023-.035 wires) - perfect for home hobbists & light-duty fabrication shops.
Wire Speed adjustments on the gun- makes it easy to quickly change WFS
20 ft heavy duty cable with cable sheath & strain relief
Easy barrell removal- 9 inch extension , heavy -duty & 45 degree barrell are now available
Two-Stage trigger with built-in-gas valve - allows pre-flow & post flow
Still plugs into the 10 pin connections allowing spoolgun & Mig gun to be hooked up simultaneously.
Hinged wire spool cover makes it easy to access wire compartment
Pressure lever for easy loading & unloading of wire
Clear spool cover shows amount of wire left on spool
Heavy duty motor & cast aluminum gearbox
9 inch extension barrell ( 302592)
Heavy Duty barrell ( 300593)
* MIG (GMAW) with aluminum and other soft alloy wires.
Suggested Power Sources:
* Millermatic 212 Autoset , 251 & 252
* Millermatic 210 & 212
Light and Heavy Industrial Applications:
* Aluminum fabrication.
* Sign Manufacturing.
* Auto and Marine repair.
